The Portable Satellite TV Kit for use in 100% of Australia

For the traveller with no satellite experience, this kit has all the bells and whistles to make setting up a piece of cake. All the equipment provided is guaranteed to be of the highest quality, and disassembles easily and compactly. We guarantee a 3 minute setup after setting up the kit more than 4 times - money back guaranteed.

Kit Consists of:

• The new Altech UEC DSD 4121RV with 12 volt and 240 volt support. The box comes with government VAST access smart card which is married to the box . We should let customers know the a VAST satellite receiver and smart card are needed to pick up all of the new 107 digital channels via the satellite. The VAST system has no ongoing fees or charges involved, as is run and funded by our Australian government.

  See the QUESTIONS PAGE for more detailed information on what channels you will receive on the new government VAST digital satellite tv and radio system.
  CLICK HERE FOR THE SHORTCUT TO THE FREQUENTLY ASKED QUESTIONS PAGE

• 80cm Azure Shine Steel Dish with an Australian designed removable arm which enables the arm on the dish to be completely detached so you can fold down and disassemble the dish flat in literally 10 seconds - just undo two wingnuts to unassemble the dish. It fits perfectly in the carry bag with the tripod. Dimensions: 78cm by 80cm in size, brackets are only 125mm. Best quality dish on the market in terms of durability and size. Disassembles quickly and smaller than any other dish on the market - We guarantee use in 100% of Australia (Wing nuts are included free of charge so no spanners are needed for dish alignment)
• Sharp 10.7 LNB (Austar/Foxtel Approved and Compatible)
• Optus Aurora Smart card (Old system) OR Choice of the VAST System (New System - See options below for choice of decoder)
• Latest model SF99 Satellite finder with short lead (no batteries needed, with built in light and audible tone)
• Tripod Mount - We have new high quality fully galvanised steel tripods that are engineered and designed for the caravan satellite industry - the smallest sat tripods on the market at approx 40cm when collapsed - with a low centre of gravity so the dish is more stable in heavy wind (See picture on the left). It comes with a built in spirit level to ensure the highest signal levels when the ground is not flat. They come with adjustable legs to get the tripod level, and each leg has holes to peg it down. (No extra cost when purchasing the deluxe system as part of the current promotion - Normally Extra $40). For customers requesting the aluminum speaker tripod stand - we do not recommend these as it takes up more storage place, has no built in spirit level or adjustable legs to get the dish flat and not as stable due to higher centre of gravity.
• 20m High Quality satellite cable with the highest quality government/Foxtel approved compression connectors (you can tug on the cable and the connectors will not move an inch)
• Standard Compass
• Angle finder with magnetic attachment gives a precise reading of the exact elevation angle from gravity (removes the need of having a spirit level). USING THE CLINOMETER IS THE TRICK TO A 2 MINUTE SETUP - WE GUARANTEE CUSTOMERS A 2 MINUTE SETUP WITH OUR DELUXE SYSTEMS AFTER CUSTOMERS HAVE SET UP THEIR SYSTEM MORE THAN A COUPLE TIMES
• Easy to Understand Instruction Booklet & Instructional Step by Step DVD

Information About Our Satellite TV kits

You may have seen satellite TV kits for caravans advertised elsewhere for prices ranging from ridiculously expensive to suspiciously cheap. In this case you may now be wondering how our systems stand apart from the others.

Access Antennas and Satellites has been in business for over 10 years, specialising in portable satellite TV. Over these years we have sold tens of thousands of portable satellite tv kits and built up our reputation Australia wide, offering low-priced, innovative, value for money kits using only high quality equipment. We are renowned for providing friendly service and honest advice. We offer lifetime support on all our satellite kits.

We recognise the need to provide travellers with a low-cost and easy to transport system that will deliver perfect TV reception anywhere in the country. As a West Australian business we know the issues of poor television reception in regional areas. Our personalised friendly service is second to none and when it comes to satellite equipment and set-up issues, we really know our stuff!

Given the right instructions, setting up a satellite system is NOT a complicated procedure, and so we don't charge you for unnecessary gimmicks!

We only supply good quality equipment that won’t let you down when you're in the middle of nowhere, all at a price that won’t break the bank and with friendly ongoing support.

With DIY satellite caravan tv kits, some companies offer equipment with features that they claim will make the set-up process easier (the biggest example being the "digital" satellite finder), but they also charge an exorbitant amount for these features. You might also find some "backyard operators" selling caravan satellite kits in caravan parks and other places at similar prices as us. However, the questions to ask before you buy from them are

1. Do competitors supply the latest VAST satellite receiver with VAST smart card with their kits - some sellers are still selling receivers with the old optus aurora card for the old optus aurora system which will be shut off in 2013. Make sure you are getting a VAST satellite receiver. After the analogue switch over you will need to purchase a VAST satellite receiver. Do not be a sucker for our competitors tricks on cheap kits without the proper receiver box. We do not like to draw people into our store with cheap prices in order to sell outdated technology.

2. Do they sufficiently educate their customers on how to use the equipment?

3. Do they provide comprehensive but easy to understand instructions in English (i.e. a comprehensive instruction booklet plus a DVD), or do they only provide a few poorly written incomprehensible pages.

3. Do they provide proper equipment to easily locate the satellite? (i.e. Wing nuts for easy adjustment that remove the need to use a spanner, compass, a satellite finder and clinometer).

4. Is the satellite TV dish designed for portable use, does it have a removable arm, will the dish fit in a bag. There are many house dishes out there which are not portable and do not fold down easily which many novice satellite technicians sell. Most people do not know the difference until it is too late.

5. Do they offer friendly customer service or help anywhere in Australia after the sale.

Beware competitors that charge marginally less (some components are similar), but use cheap, low quality equipment in order to maintain their profit margins. Our company has thrived in the competitive satellite TV market in Western Australia by having lower profit margins than most Eastern States companies. What this means is that we don't make as much money from each system as other companies but still offer the same high quality equipment

In summary

We have carried out extensive research and development to perfect our systems. We source the most appropriate high quality robust components, and some components are exclusive to us.
Our DIY kits are easy to assemble and use, and they are more compact and reliable than other kits on the market.
Our instructions on DVD are comprehensive and easy to follow, making it very easy to set-up and align the dish.
We have experienced friendly staff
We give after sales support, service and advice
We provide all round value for money (service and quality)

Access Antennas and Satellites take care that your satellite system not only works - but works perfectly!

Orders

Phone orders are welcome - (08) 9446 4433 - 9.00am - 5:30pm WST .

We can post to any location within Australia for only $49 delivered - registered with Australia Post for security and peace of mind. This cost includes a thick $10 cardboard box specially designed for our satellite kits.

Features/Specifications:

Satking High Definition Australian VAST certified Satellite Receiver
High definition MPEG-4
12/240 Volt operation for home or RV use - (12 Volt Cable Optional)
Compact size 220 mm x 180 mm x 47 mm
Friendly bright coloured menu
Built in Signal finder with beeper
USB PVR ready as standard (compatible with most drives and memory sticks)
Large button remote with learning functions
Fast operating 8 day EPG
Infrared target (optional)
Parental control
Time shift function via PVR
Program auto tune with reminder
HDMI output
Component output
CVBS output
RF modulator
Digital audio (Coaxial & S/PDIF)
Dolby digital audio
LNB loop out (for connection to another decoder)
USB-2.0
USB speed test
DiSEqC 1.0/1.2 supported
Adjustable LNB settings
Low power consumption (less than 15 W)
Over the air software download supported
Subtitles supported
IRDETO secure silicon inside

The new SatKing DVBS2-800CA VAST Satellite high definition satellite receiver brings a new level of features to the VAST Australian free to air TV platform. Designed with ease of use in mind, customers will find this VAST receiver a pleasure to use. From the moment you first turn on the receiver , you will notice the unit is super fast to turn on and scan in channels unlike other models on the market, the Optus VAST card is already loaded in the decoder for you. A large remote control with easy to read and use buttons with built in learning function to take over basic controls of your TV (no need for two remote controls any more). The compact design is a real winner measuring 220 mm in width and very low power consumption, well below 15 watts. With PVR ready via USB as standard simply connect your external USB device to use to unit as a PVR. You will also find a fast operating and easy to read 8 day Electronic Program Guide (EPG). The unit can be used for either VAST traveller customers (12 Volt) or VAST at home customers (240 Volt) via the included power pack.

For self installation, for caravaners or houses, the SatKing has developed a highly sophistical internal signal finder with an intensity beeper to assist with installations/alignments. The higher the signal, the faster the beeping. Plus the satking has an electronic map built in to give you your coordinates for easier dish positioning. The unit also has a detailed electronic help guide and handy features like a USB speed test to test your USB device. For the VAST traveller caravan market the unit also has an optional IR target so you can place the VAST decoder in a cupboard and hide the unit out of sight also handy two place the unit behind large screen TV’s in home when you don’t want to look at the STB.

Commercial installations and customers with older TV’s will find the built in RF modulator of great assistance, you can simply use the SatKing decoder on any TV new or old without any extra expense.

The new Altech UEC 4121 RV for VAST Australian satellite TV , to suit travellers and viewers in black spot areas or areas with no signal at all.

The DSD 4121 RV is a MPEG 2/4 High Definition digital set top box designed specifically to meet the requirements of the Optus Aurora Digital platform and associated VAST certification process. The DSD 4121 RV utilizes mature tried and tested technology that allows connectivity to both flat panel and legacy CRT TV’s. The product has been future proofed through the incorporation of an Ethernet port for connection to the internet and USB port that can convert the unit as a PVR unit and/or for media playback.

The DSD 4121 has been designed with an external 12 Volt D.C power supply which provides portability allowing a traveler to connect this decoder to a well regulated 12 Volt D.C supply

Key Features

STi7111 Secure Processor Core
MPEG-2/4 High Definition
DVB-S2 Front end
F-Type Satellite input
IRDETO secure silicon conditional access
450 MHz core processor
Over-the-Air secure software download
HDMI output
Component video output
Coaxial S/PDIF digital audio output
Optical digital audio output
Dolby digital audio
Subtitles
Stereo audio outputs
USB 2.0 interface
8 Day electronic program guide
Australian VAST certified
External 240V/12Volt DC power supply

The new government funded satellite system is called V.A.S.T – Viewer Access Satellite Television. Aimed at providing perfect digital reception to people in blackspot and rural areas. At the moment the only way to pick up the VAST system is with the Altech UEC High Definition Satellite decoder, which comes with the smart card (access card) built in.

The VAST system has 107 digital channels including many High Definition channels. The VAST satellite decoder has a proper digital connection to the TV also, called a HDMI connection. This provides the highest quality picture that is possible.

The channels available include

-ABC1,2,3,4 and ABC24HourNewsHD for every state/territory
-SBS 1,2,3HD for every state and territory
-NITV - the dedicated National Indigenous TV Channel
-Over 50 radio stations which can be accessed Australia-wide in areas were this is no radio signals at all

For Every State excluding Western Australia
-7Central, 9Imparja , 10Central
-One HD, Eleven, 7Two, 7Mate, 9Go, 9GEM and more
-The local news content from regional broadcasters will eventually be available on a dedicated local news channel exclusive to VAST.

If the smart card is registered to Western Australian (traveller or permanent)
-7GWN , 9Win and 10West
-One HD, Eleven, 7Two, 7Mate, 9Go, 9GEM and more

There are no ongoing costs when using these services as they are both free to air services. The new VAST satellite system is completely government funded.

http://www.uec.com.au/au/images/stories/dsd4121rv-rear.jpg

Front End Tuner Specifications
Frequency range
DVB- Standard
Symbol Rate ( DVB-S2 )
Symbol Rate ( DVB-S )
950 - 2150 Mhz
DVB-S2 QPSK Demodulator , 8 PSK
2 Msym/sec to 30 Msym/sec
2 Msym/sec to 45 Msym/sec
Processor Core
Host Processor
Flash Memory
RAM
STi 7105, 450 Mhz core processor
32 MBytes
256 MBytes
Video
Video Decoder
Video Format
Video Outputs
MPEG-4 (H.264), MPEG-2 MP@HL
PAL
1080p,1080i, 720p, 576p, 576i
Audio
Audio Decoder
Dolby audio support
Mpeg 2 layer 1&2 ( Musicam ), MPEG4 AAC/AAC+
Downmix and pass through via HDMI, optical and coaxial connectors
Connectors
RF in
HD video
SD Video
Digital Audio
Analogue Audio
USB
Serial Connector
Smart Card
Ethernet
Power Supply
F- Type
HDMI
Composite video and Component video
Optical , Coaxial and HDMI
RCA Left & Right
USB 2.0
9 pin D-type for data services
ISO 7818
RJ45
12 Volt external power supply
HDD
500 GB

The Auslog antenna has a massive 30 elements

Logarithms are related to musical tones and intervals. The same science is being more and more applied in the communications industry and in this case giving an increased signal strength over yagi antennas using older technology.

Why invest into old technology when you can get latest RF technology in this small but sophisticated digital antenna. These antennas work unbelievably well in weak signal areas, exceptionally well in valleys, and even country towns. This antenna picks up every channel inside our showroom while big Australian made yagi antennas stuggle.

The length and spacing of the elements of a log-periodic antenna increase logarithmically from one end to the other. A plot of the input impedance as a function of logarithm of the excitation frequency shows a periodic variation.

ABOUT THE AUSLOG ANTENNA - AUSTRALIA'S FAVOURITE AUSTRALIAN MADE ANTENNA

The AusLog is designed for the harsh Australian environment and are made from high quality aluminium alloy with added rust inhibitor. Auslog peroidic log antennas will last much longer than the standard conventional yagi type.

We highly recommend customers to support the Australian work force and support the Australian Made AusLog digital TV antenna. It does not contain any plastic supports which can break with time nor does it contain joining screws which can rust or heavy long elements for birds to break when they land on. The thin alloy rods are mechanically forced into the shaft to literally make the antenna unbreakable.

To learn more about how log-peroidic antennas, you can visit
CLICK HERE FOR INFO AT WIKIPEDIA ENCYLOPEDIA
http://en.wikipedia.org/wiki/Log-periodic_antenna

To see photos of the production process at the Mt Eliza plant in Melbourne please email us.

CLICK ON LINK TO WATCH THE CHANNEL 7 NEWS INFORMATION ON DIGITAL TV WITH REFERENCE TO THIS ANTENNA

The video above has been filmed by Paul Nicholas, a satellite installer in Queensland who specialises in Christian satellite tv. He provides a good understanding on how to install a DIY satellite system on any kind of Australian roof.

Kit Consists of:

The choice of either ALTECH UEC 4121 Satellite Receiver
or the new Satking VAST Satellite Recevier with built in PVR

>> High gain 85cm dish

>> High Gain Strong/Sharp 10.7 LNB

(Austar/Foxtel Compatible)

> Vast SMART Card

(needed to access all the free to air channels)

> Satellite finder and lead

(no batteries needed, with built in light and audible tone)

> Quality Tin Roof Mount OR

Tile Roof Mount OR Wall/Chimney Mount

> 20m High Quality satellite cable with high end foxtel compression crimped connectors

(completely weather proof guaranteed)

> Compass

> Easy to Understand Instruction Booklet & Instructional DVD

Upgrade to buy your kit with a Clinometer / Angle Finder for 2 minute setup $25

You may have seen satellite TV kits advertised elsewhere for prices ranging from ridiculously expensive to suspiciously cheap. In this case you may now be wondering how our systems stand apart from the others.

Access Antennas and Satellites has been in business for over 9 years, specialising in DIY caravan/house satellite TV. Over these years we have sold many thousands of satellite kits and built up our reputation Australia wide, offering low-priced, innovative, value for money kits using only high quality equipment. We are renowned for providing friendly service and honest advice. We offer lifetime support on all our satellite kits.

We recognise the need to provide customers with a low-cost and easy to setup system that will deliver perfect TV reception anywhere in the country. As a West Australian business we know the issues of poor television reception in regional areas. Our personalised friendly service is second to none and when it comes to satellite equipment and set-up issues, we really know our stuff!

Given the right instructions and tools, setting up a satellite system is NOT a complicated procedure, and so we don't charge you for unnecessary gimmicks!

We only supply good quality equipment that won’t let you down when you're in the middle of nowhere, all at a price that won’t break the bank and with friendly ongoing support.

With DIY satellite kits, some companies offer equipment with features that they claim will make the set-up process easier (the biggest example being the "digital" satellite finder), but they also charge an exorbitant amount for these features. You might also find some "backyard operators" selling caravan satellite kits in caravan parks and other places at similar prices as us. However, the questions to ask before you buy from them are

1. Do they supply a legitimate Optus card (RRP $99) with their kits - some sellers do not offer/provide a card at all. We do not like to draw people into our store with cheap prices in order to sell incomplete systems.

2. Do they sufficiently educate their customers on how to use the equipment?

3. Do they provide comprehensive but easy to understand instructions in English (i.e. a comprehensive instruction booklet plus a DVD), or do they only provide a few poorly written incomprehensible pages.

3. Do they provide proper equipment to easily locate the satellite? (i.e. Wing nuts for easy adjustment that remove the need to use a spanner, compass, a satellite finder and clinometer)

4. Do they offer friendly customer service or help anywhere in Australia after the sale.

Beware competitors that charge marginally less (some components are similar), but use cheap, low quality equipment in order to maintain their profit margins. Our company has thrived in the competitive satellite TV market in Western Australia by having lower profit margins than most Eastern States companies. What this means is that we don't make as much money from each system as other companies but can offer the same high quality equipment

In summary

We have carried out extensive research and development to perfect our systems. We source the most appropriate high quality robust components which are designed and built to survive the harsh Australian conditions.
Our DIY kits are easy to assemble and use and come complete with everything. If you are unsure about anything, feel free to call us and ask any questions before purchasing.
Our instructions on DVD are comprehensive and easy to follow, making it very easy to set-up and align the dish.
We have experienced friendly staff
We give after sales support, service and advice
We provide all round value for money (service and quality)

Access Antennas and Satellites take care that your satellite system not only works - but works perfectly!

Orders

Phone orders are welcome - (08) 9446 4433 - 0415579725 - 9.30am - 5pm WST .

We can post to any location within Australia for only $49 delivered - registered with Australia Post for security and peace of mind. This cost includes a thick $10 cardboard box specially designed for our satellite kits.

INSTRUCTIONAL VIDEO BY PAUL NICHOLAS ON HOW TO INSTALL A SATELLITE SYSTEM DIY ON A HOUSE - THIS IS A REALLY GOOD VIDEO WHICH INSTRUCTS BEGINNERS ON HOW TO INSTALL THE MOUNT ON THE ROOF - THE SATELLITE RECEIVER IN HIS VIDEO IS FOR CHRISTIAN TV BUT HAS THE SAME PRINCIPLES

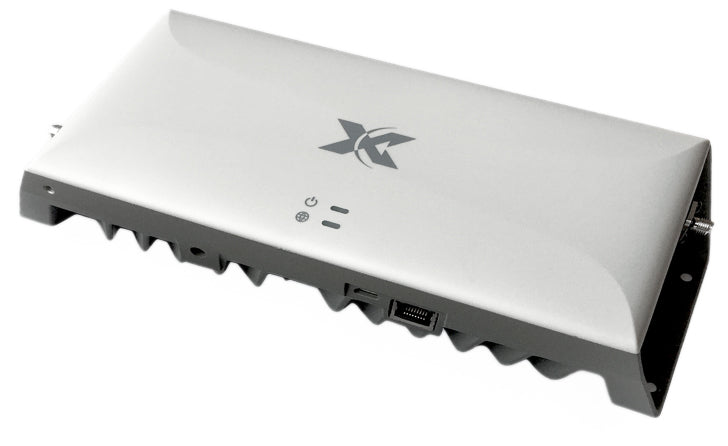

Do you get poor reception in your house . Struggling with just one bar. This is the perfect option , the Cel-Fi Phone antenna booster repeater to any network inlcluding telstra.

Specifications
WINDOW UNIT
207MM (8.14”)H
144MM (5.66”)W
144MM (5.66”)D
Weight: 0.9kg (2lbs.)
COVERAGE UNIT
151MM (5.94”)H
149MM (5.86”)W
49MM (1.92”)D
Weight: 0.34kg (.75lbs.)
ENVIRONMENT
• Operating temperature: 0° to 40°C
• Storage temperature: -25° to 60°C
• Relative humidity: 5 to 95%, noncondensing
• Operating altitude: -60m to 3,050m
• Storage altitude: 12,000m
• RoHS (2002/95/EC) six of six
compliant
• WEEE (2002/96/EC)
3GPP COMPLIANCE
• 3GPP TS 25.143 Rel.8
SAFETY
• EN 60950-1:2006 +A11:2009 +A1:2010
• EN 62311:2008 1999/519/EC EMF
EMC/EMI/IMMUNITY
• EN55022 Class B
• EN61000-3-2, 3
• EN61000-4-2~6,11
• EN 301 489 -1,17, 23
• EN 301 893 V1.5.1
• EN 301 908-1,11
POWER
• 12 VDC via external supply
(2 included)
• External supply: 100 to 240 VAC, 47
– 63 Hz.
• Power consumption less than 12W
per unit

Features:

· Easy to use – just connect to your 12V battery

· Tough canvas carry bag

· Cable disconnects – no short circuits

· Bypass diodes built in

· Quality Aluminium frame

· High quality monocrystalline cells

· Solid full width stand

Features:

· Voltage regulation

· PWM shunt Battery charging

· Floating charge

· Automatic Reconnection

· Automatic selection of voltage (12V/24V)

· Temperature compensation

Electronic Protections:

· Overloading protection

· Short circuit protection

· Reverse current protection

· Reverse polarity protection

· Lightning protection

· Overcharge protection

· Over discharge protection
