• Ubiquiti UniFi Dream Router 7 Front
  • Ubiquiti UniFi Dream Router 7 Accessories
  • Ubiquiti UniFi Dream Router 7 Rear Ports

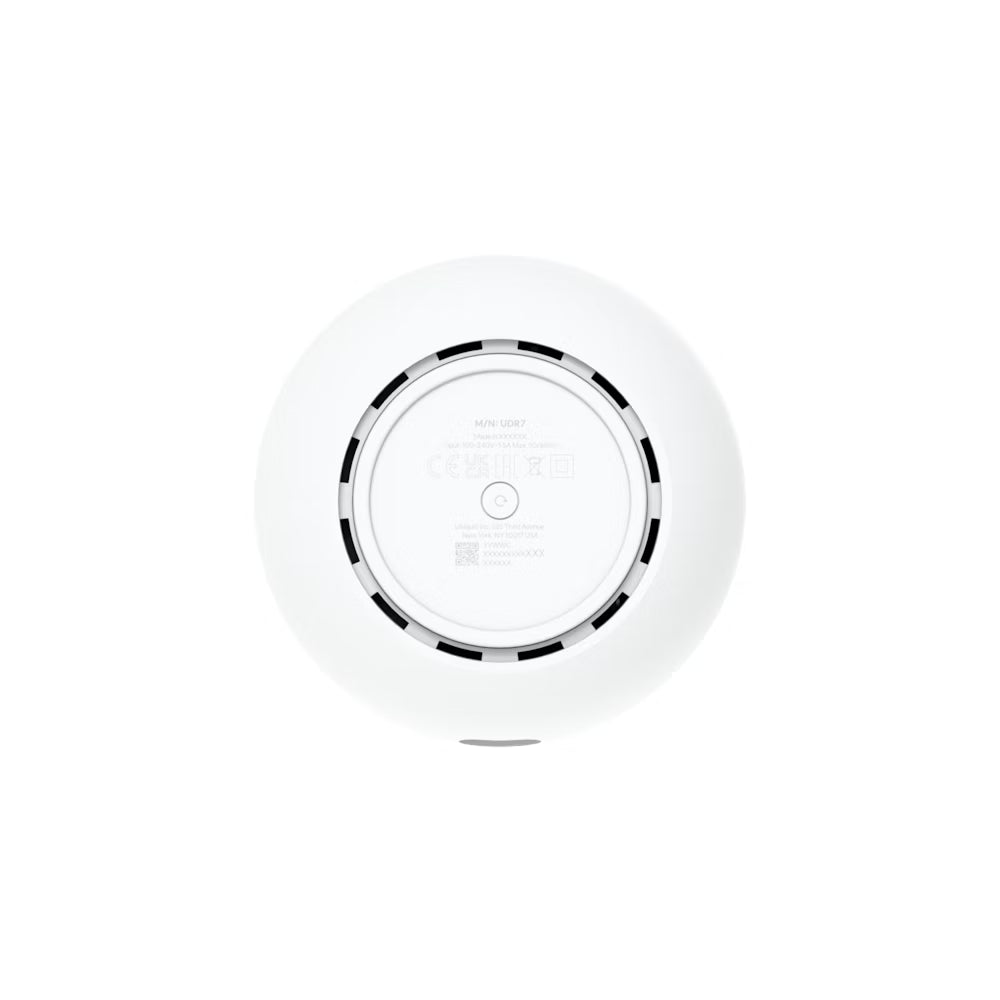

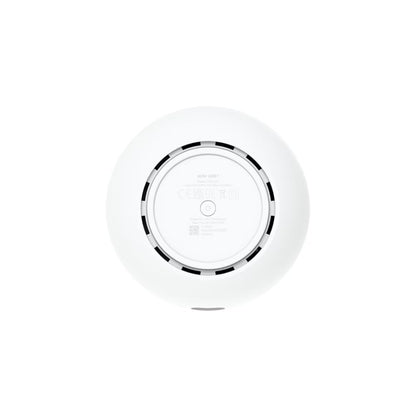

  • Ubiquiti UniFi Dream Router 7 Bottom Fan
1 4

Access Antennas

Ubiquiti UniFi Dream Router 7 UDR7

Ubiquiti UniFi Dream Router 7 UDR7

$599.00
$599.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

The UDR7 UniFi Dream Router 7 is a high-performance desktop cloud gateway designed for modern networks, featuring WiFi 7, an integrated PoE-enabled switch, microSD storage, and full support for the UniFi application ecosystem. As the next-generation successor to the original Dream Router (UDR), it combines exceptional speed, reliability, and value in a single device.

Running on UniFi OS, the UDR7 centralizes network and system management, eliminating the need for separate controllers or licenses. It offers a 10G SFP+ port alongside four GbE RJ45 ports, including one with PoE to power compatible devices. The built-in LCM color display provides real-time monitoring of all connections and network activity.

Designed as a complete, easy-to-use networking hub, the UDR7 can be quickly configured and managed through the UniFi Application Suite or the mobile app, making it ideal for both home and small business setups.

UniFi Dream Router 7 (UDR7) features, as provided on the official Ubiquiti Tech Specs page:

Networking & Ports

  • WAN Ports:

    • 1 × 10G SFP+

    • 1 × 2.5 GbE RJ45

    • 4 × 2.5G/1G/100M/10M RJ45 (1 PoE)

  • IDS/IPS Throughput: 2.3 Gbps

  • Max. WAN Port Count: 4

  • Max. BSSIDs per Radio: 4

  • Coverage Area: 160 m² (1,750 ft²)

  • Max. Simultaneous Users: 300+

  • Managed UniFi Devices: 30+

  • Managed Cameras: 5 × HD, 2 × 2K, 1 × 4K

Wireless (WiFi 7)

  • Standards Supported: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

  • Throughput:

    • 6 GHz: 5.7 Gbps

    • 5 GHz: 4.3 Gbps

    • 2.4 GHz: 688 Mbps

  • MIMO Configuration:

    • 6 GHz: 2 × 2 (DL/UL MU-MIMO)

    • 5 GHz: 2 × 2 (DL/UL MU-MIMO)

    • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)

  • Antenna Gain:

    • 6 GHz: 6 dBi

    • 5 GHz: 7 dBi

    • 2.4 GHz: 5 dBi

  • Max. TX Power:

    • 6 GHz: 24 dBm

    • 5 GHz: 26 dBm

    • 2.4 GHz: 23 dBm

  • Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

  • Supported Data Rates:

    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    • 802.11b: 1, 2, 5.5, 11 Mbps

    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

    • 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

    • 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

    • 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware & Power

  • Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz

  • System Memory: 3 GB

  • NVR Storage: Pre-installed 64GB microSD for NVR

  • Expansion Slot: MicroSD Card

  • PoE Budget: 15.4W

  • Max. Power Consumption: 26W (Excluding PoE output)

  • Power Method: Universal AC input, 100—240VAC, 1.5A Max, 50/60 Hz

  • Power Supply: AC/DC, Internal, 50W

  • Supported Voltage Range: 100—240V AC

  • Weight: 1.1 kg (2.4 lb)

  • Enclosure Material: Polycarbonate

  • LCM Display: 0.96" status display

Management & Security

  • Management Interfaces: Ethernet, Bluetooth

  • Buttons: 1 × Factory-reset

  • LEDs: System

  • ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV

  • Ambient Operating Temperature: -10 to 40° C (14 to 104° F)

  • Ambient Operating Humidity: 5 to 95% noncondensing

  • NDAA Compliant: Yes

  • Certifications: CE, FCC, IC

Software & Application Requirements

  • VLAN Support: 802.1Q

  • Guest Traffic Isolation: Yes

  • Application Requirements: UniFi Network Version 9.0.108 and later

Buy Ubiquiti Dream Router today, from local Australian stock.

Unifi Dream Router 7 Installation Guide

View full details
