Description

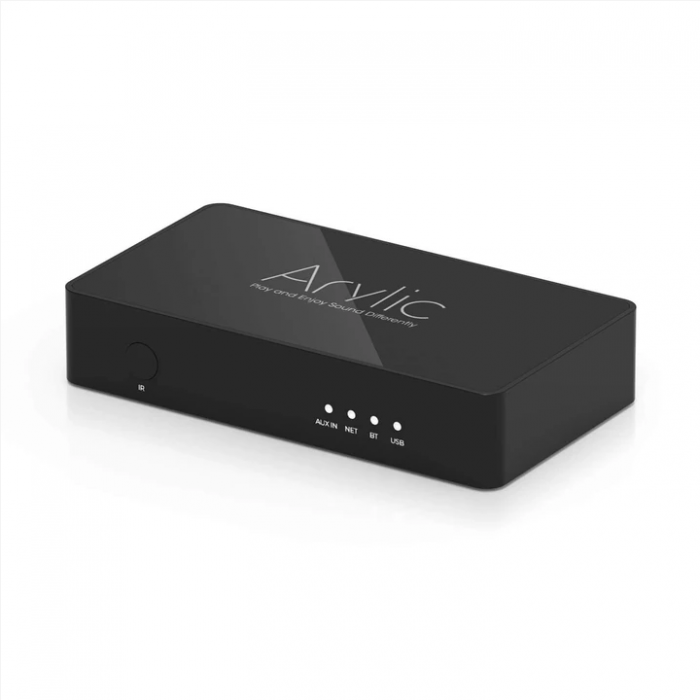

With the S10 mini integrated preamp you can stream your audio wirelessly to your speakers via Wifi, Bluetooth 5.0, Airplay, DLNA & UPnP. No matter where you are in your house, you can always take out your phone to play a song for you or your family. Easily and wirelessly play a bedtime story for your children or a Nickelback song to annoy your neighbours.
- Smaller than your hand with a simple design, these features make S10 an easy fit for your home
- Supports 16bit/44.1khz audio streaming and up to 24bit,192khz decoding which means you can stream with High Resolution audio wirelessly
- Set an S10 preamp unit to each of your home stereo devices as a streamer in your house, then you can group and control all the units to sync or play the sounds separately at the same time
- S10 mini preamp is equipped with an Up2stream Pro V3 audio receiver board inside so it can work as a USB DAC. You can directly connect it to a PC and stream PC audio digitally, also.
Stream your favourite online music such as Spotify, Amazon Music, Tidal, Deezer, Qobuz, Internet Radio, iheartRadio, Napster etc. The S10 min preamp is compatible to common stereo devices like amplifiers, vinyl players, active speaker and TV's.
|
USER INTERFACE & CONTROLS LED indicators White-WiFi & network mode: Flashing fast-device is booting Flashing slow- waiting for WiFi connection Solid- WiFi is connected Blue-Bluetooth mode: Flashing slow- waiting for Bluetooth connection Solid- Bluetooth is connected Green-Line in mode Red-USB mode Yellow-connect to PC Power Button Device on: Short press once: Switch input mode Long press once: Switch off Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode); Disconnect current connected Bluetooth device (Bluetooth mode) Short press three times: Restore the factory settings Device off: Short press: Switch on PC iTunes/Musicbee/Foobar 2000 Remote Remote Control Available 4stream App Free iOS and Android App |
AUDIO Music Format FLAC/MP3/AAC/AAC+/ALAC/APE/WAV Audio Decode Up to 24bit/192kHz Audio Output 44.1khz/16bits, CD quality Frequency Response 20Hz-20kHz THD+N 0.03% SNR 110dB Audio Decode Up to 24bit/192kHz Online Music Service Check here Local Storage Mobile device memory, NAS, USB pen drive/Stick |
GENERAL Weight 0.2kg Dimensions 116.2*64*22.6mm Working temperature 0~40℃ Package Included Main unit x1 User's manual x1 2-1RCA cables x1 Aux 3.5mm cable x1 Remote cotrol x1 5V1A Micro USB Power adapter x1 |
|
CONNECTIVITY Wifi IEEE 802.11 b/g/n 2.4G Bluetooth 5.0 SBC/AAC, 10M Wired Connection Ethernet RJ45 Streaming Protocols AirPlay, DLNA, UPnP, Spotify connect, Qplay |
INTERFACES Power input 5V1A Audio input 3.5mm mini jack（1Vrms) USB Host For USB pen drive/stick, 1000 songs limited Antennas WiFi/Bluetooth Signal |
