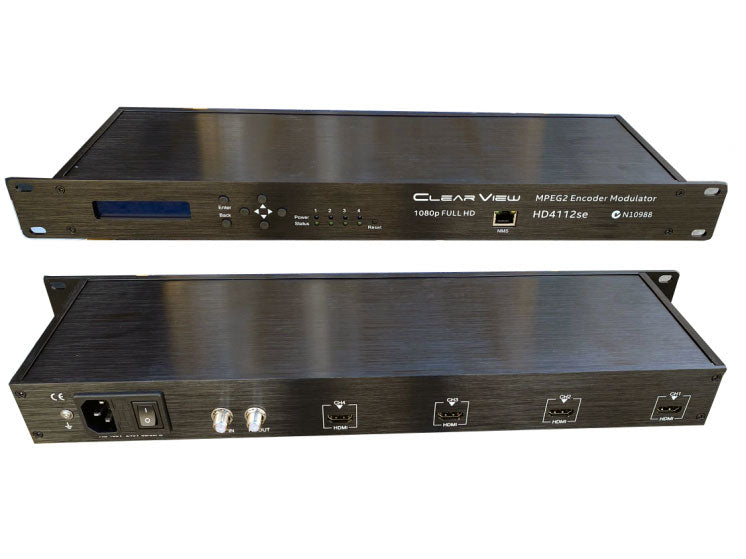

The Clearview HD4112SE HDMI Modulator Encoder Modulator supports 4 HDMI inputs, and 1 F (4 RF) female output. After encoding and modulation, the input signal appears on 4 x RF carriers at the RF output. The Clearview HD4112SE HDMI Modulator now has LCD Display and WEB GUI.
▪ 4 HDMI inputs
▪ 4 RF carriers out
▪ HDCP compliant
▪ LCD and WEB GUI Control
▪ Rack Mountable
▪ 1080p resolution
▪ ONID, NID, LCN and TSID Adjustable
▪ Service ID and PIDs Adjustable
▪ Encoding Bitrate Adjustable
▪ Modulation Parameters Adjustable
▪ Firmware upgradeable via Ethernet Port
▪ Rack position for multiple unit installation.
▪ 2 cooling Fans Built in
▪ MPEG2 -Works on MPEG2 and MPEG4 TVs, IQ2, 3 and 4 tested.
TECHNICAL SPECIFICATIONS
Encoding Section-Video
Encoding: MPEG2
Interface: HDMI x 4
Resolution
Input: PAL,NTSC 720@50p,720@60p 1080@50i/p,1080@60i/p
Output Max:1080@30p
Bit rate: 2-20Mbps
Encoding Section-Audio
Encoding: MPEG-1 Layer2, AAC
Sample rate: 48KHz
System
Management: Ethernet
Language: English
Upgrade and control: via Ethernet
Menu Configuration
General Frequency/ RF Attenuation/ Service Name/ Modulation/LCN
Stream/Encoder
PMT PID/Video PID/Audio PID/PCR PID/TS ID/ Service ID/
ON ID/ Network ID/Service provider/Network Neme/Min
Bitrate/Max Bitrate/Audio Encoder/FHD Output
Network: IP Address/Subnet Mask/Default Gateway/MAC Address
Update: Controller Firmware/Modulator Firmware/Main MCU
Modulator Section
MER >35dB
RF range: 100 to 950MHz in1KHz steps
RF output level: 100dBμV(25dB Attenuation)
Standard: DVB-T
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval: 1/4, 1/8, 1/16, 1/32
FFT: 2K, 8K
General
Power supply: 100-240V AC 50/60Hz
Dimensions: 484 x 135 x44mm
Weight: 1200g
