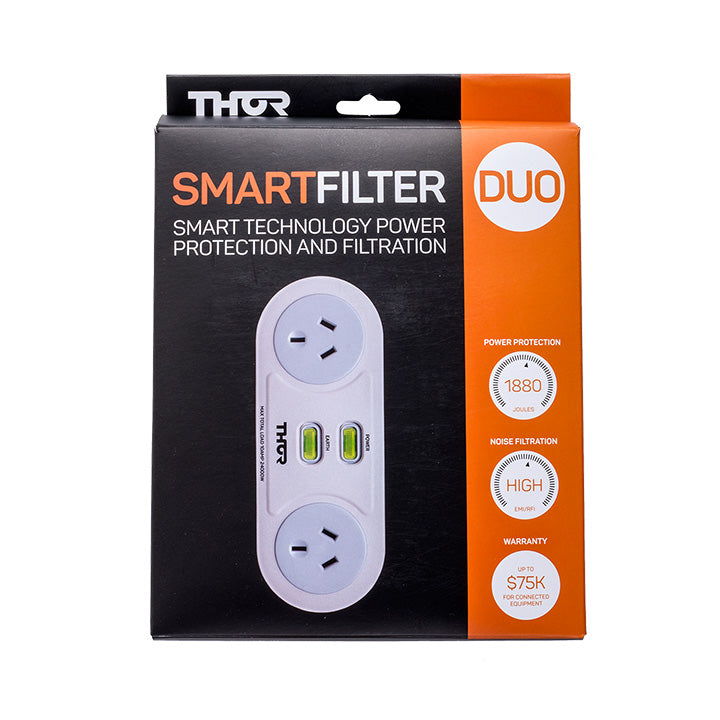

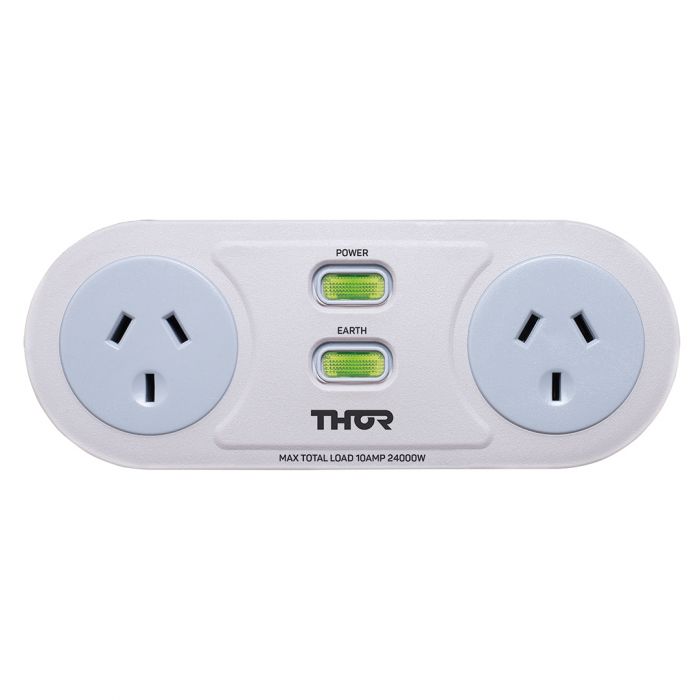

Thor SmartFilter Duo C2+ is the affordable way to protect your most valuable electrical equipment. The space saving design now means you can have surge protection and filtration anywhere.
The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
- Thor Surge Protected Power Board
- Product Dimensions: 162mm(W) x 33mm(H) x 65mm(D)
- Supply voltage 240/V AC 50/Hz
- Maximum current rating 10amps/2400 W (VA)
- Clamping voltage 275VAC
- Reaction time less than 1 nanosecond
- Maximum transient spike impulse current 42,000 amps (equivalent to 14,000 amps using UL1449 standard)
- Maximum energy dissipation 1880 Joules (equivalent to 360 Joules using UL1449 standard)
- Protection modes: Active/Neutral, Active/Earth, Neutral/Earth
- EMI/RFI noise reduction filter
- Total number of protected AC outlets: 2
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Earth detection circuit: Yes
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/+60C
- Cable length: 1.0m
- Model No: C2+
