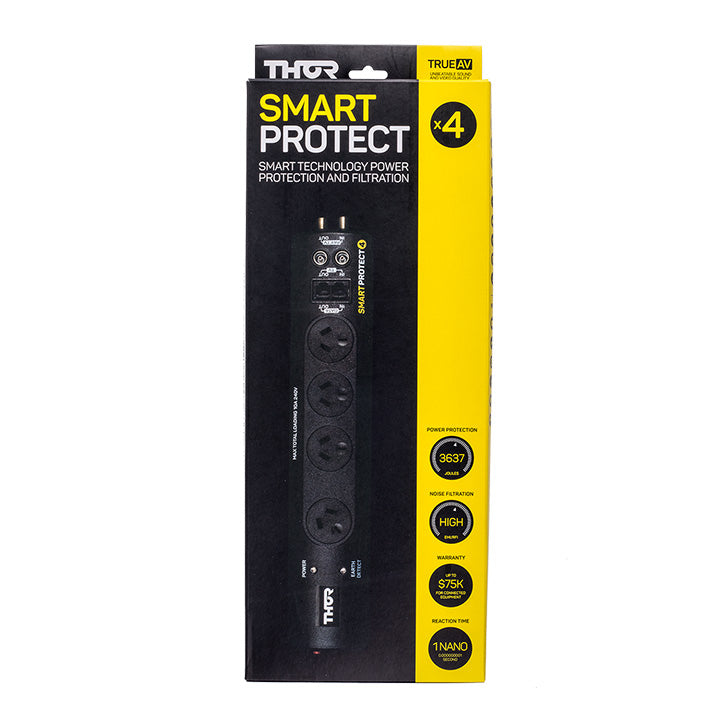

The Thor Smart Protect 4 Power Board E1/45S does more than protect your valuable electronic equipment. The space saving design now means you can have surge protection and filtration anywhere.
The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound.
- Thor Surge Protection Power Board
- Product Dimensions: 350mm (L) x 35mm (H) x 70mm (W)
- Supply voltage 240/V AC 50/Hz
- Maximum current rating 10amps/2400W(VA)
- Reaction time less than 1 nanosecond
- Maximum translent spike impulse current 86,000 amps (equivalent to 21,500 amps using UL 1449 standard)
- Maximum energy dissipation 3637 Joules (equivalent to 846 Joules using UL1449 standard)
- Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
- EMI/RFI noise reduction filter type
- Total number of protected AC outlets: 4
- Pay TV'F' type connection: 1 in and 1 out
- AV/TV antenna coax connection: 1 in and 1 out
- RJ 45 data protection: 1 in and 1 out
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/+60C
- Cable length: 1.2m
- Model No: E1/45S
