Description
Advanced Switching Technology for the Masses

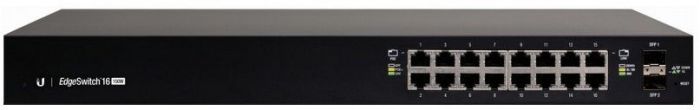

Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols and also provides Layer-3 routing capability.
• 16x Gigabit RJ45 Ports
• 2x SFP Ports
• 1x Serial Console Port
• Non-Blocking Throughput: 18 Gbps
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• Maximum Power Consumption: 150W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable with Rack-Mount Brackets (Included)
Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 16-port model supports up to 18 Gbps and the 24-port models support up to 26 Gbps. The 48-port models support up to 70 Gbps.
PoE+ Flexibility
The EdgeSwitch models are available with 16, 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 16- and 24-port models include two SFP ports, providing up to 1 Gbps uplinks. For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry standard command-line interface (CLI) is available through the serial console port, telnet and SSH.
Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port and a variety of advanced features including: MSTP/RSTP/STP, VLAN, Private VLAN, Voice VLAN, Link Aggregation, DHCP Snooping, IGMP Snooping, TACACS+, RADIUS, 802.1X, MAC Filtering, ACL, DiffServ, CoS, Static Routing, Policy-Based Routing.
