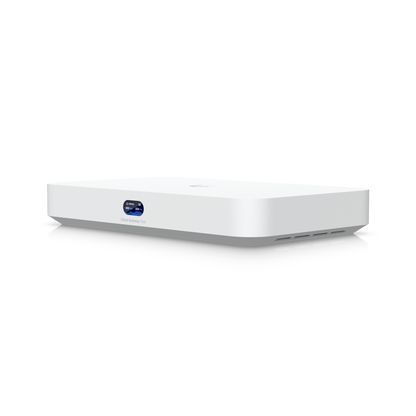

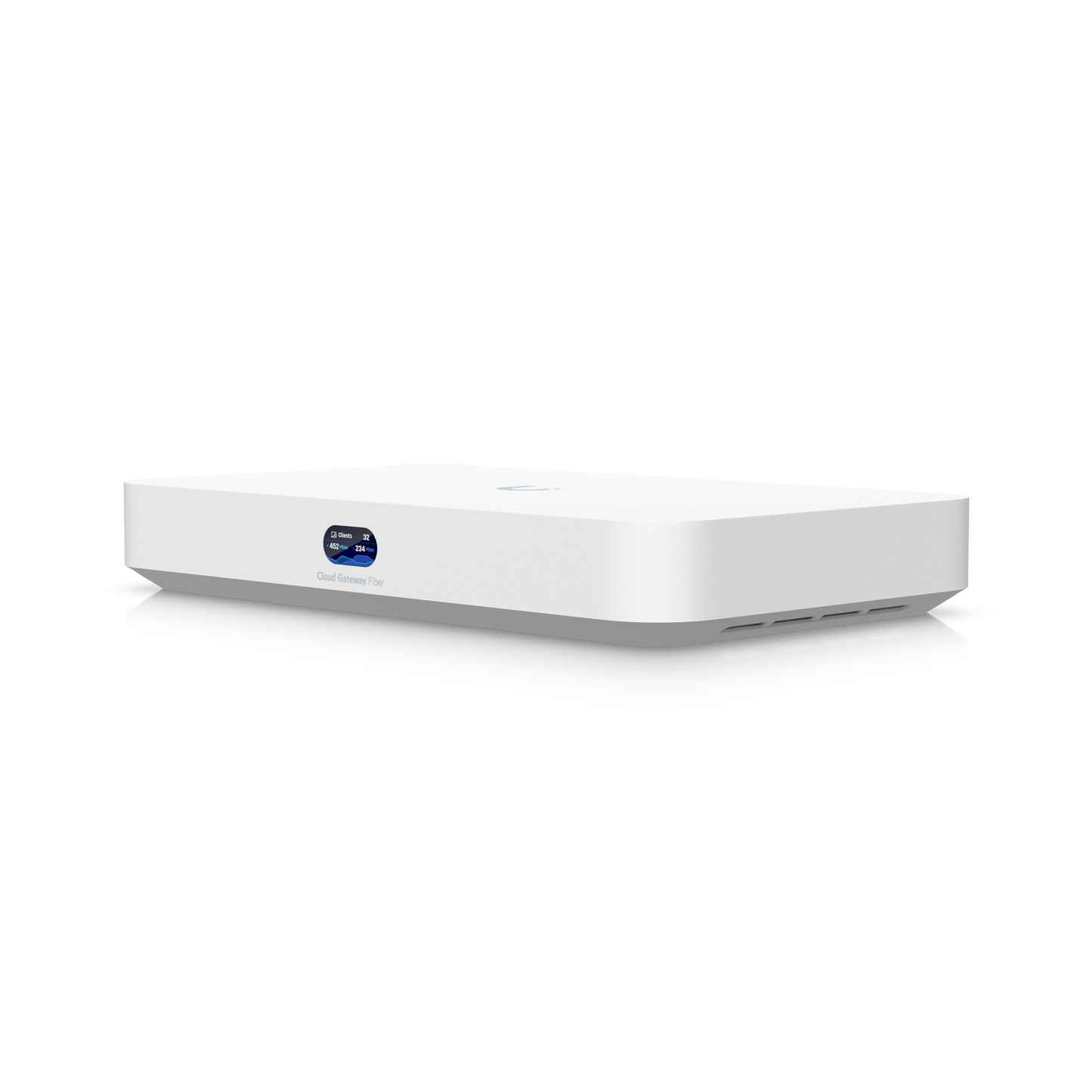

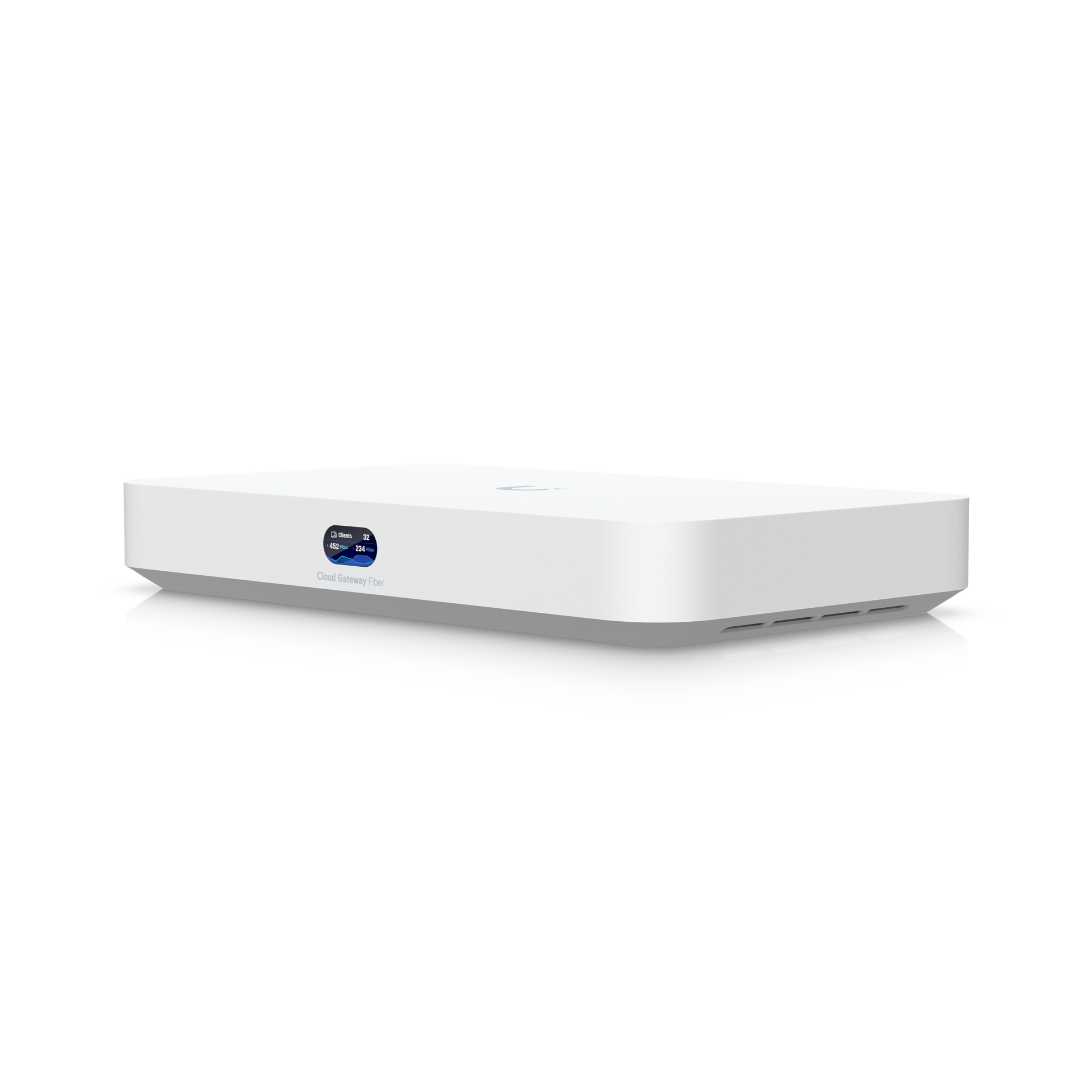

Ubiquiti UniFi Cloud Gateway Fiber (UBNT-UCG-FIBER)

The Unifi Cloud gateway Fiber is a desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, IDS/IPS, Multi-WAN load balancing, NVR storage slot, and full UniFi application support.

• Dimensions: 212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5")
• Form Factor: Compact desktop
• Weight: Without SSD: 675 g (1.5 lb), With SSD: 734 g (1.6 lb)
• Enclosure Material: Polycarbonate

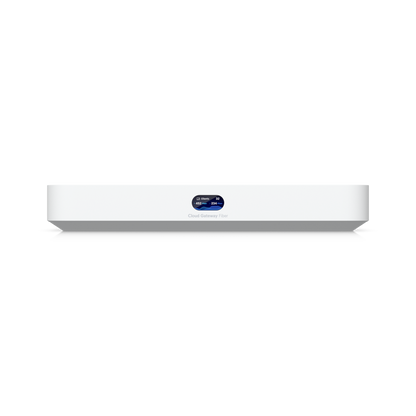

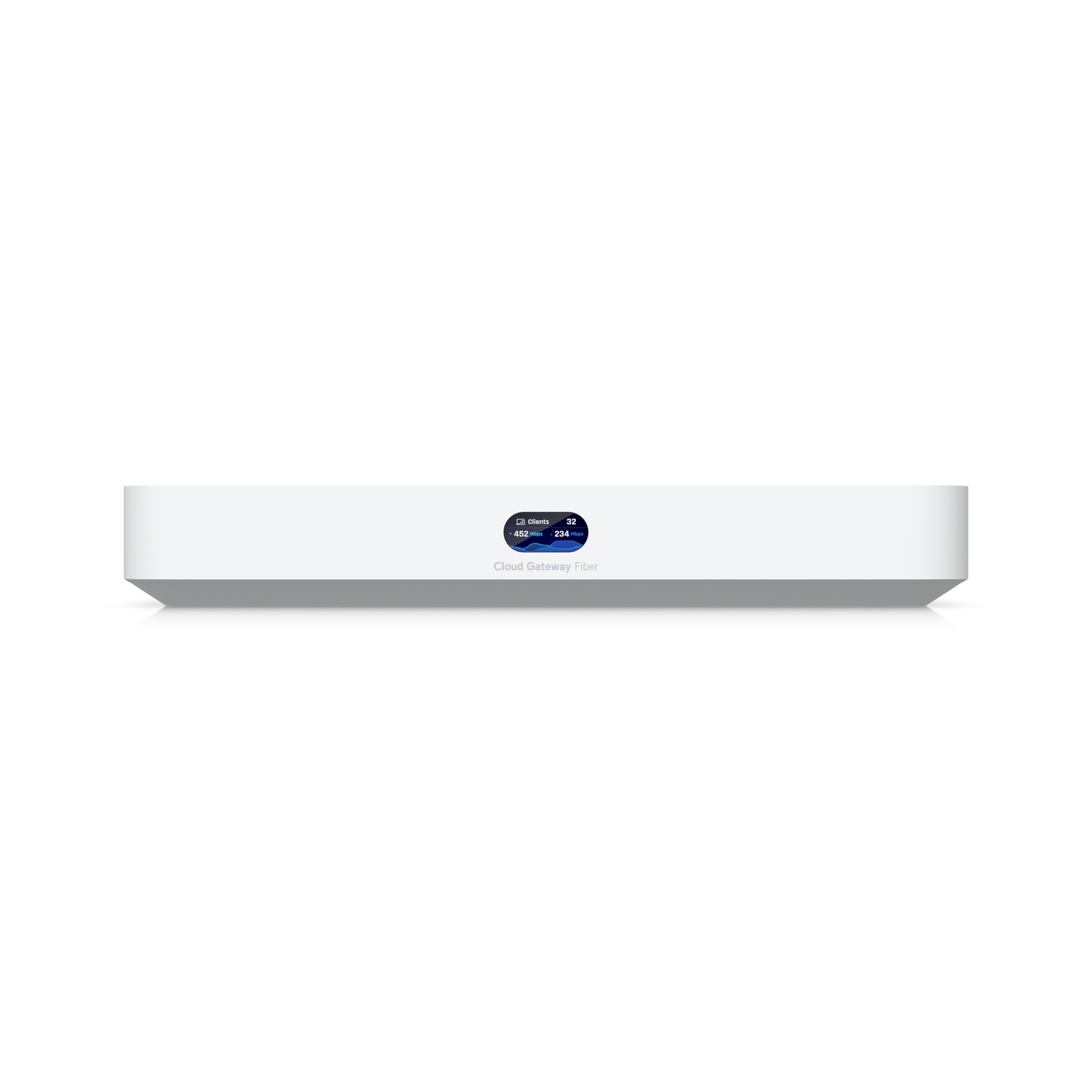

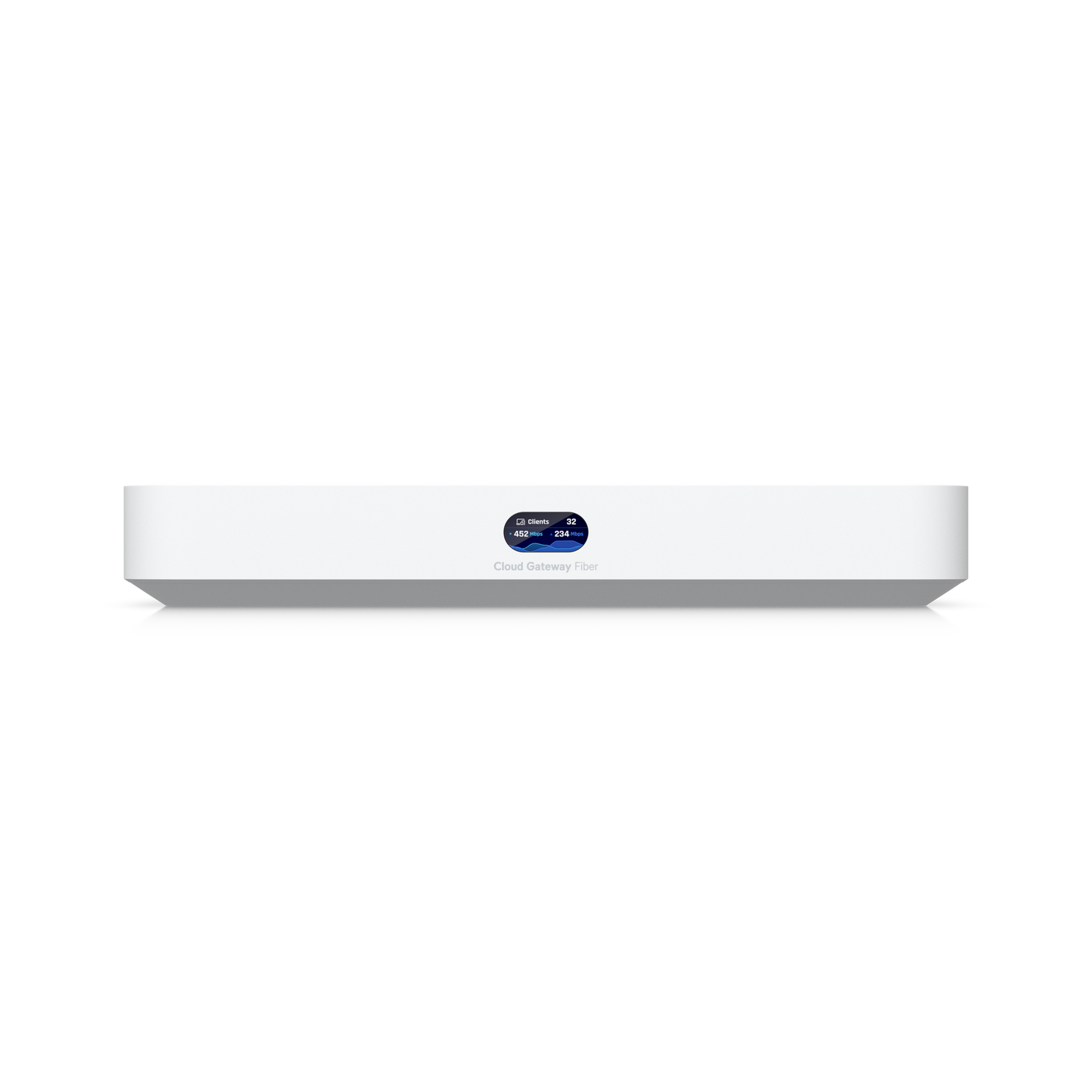

• LCM Display: 0.96" status display
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Operating Humidity: 5 to 95% non-condensing
• ESD/EMP Protection: Air: ±8 kV, Contact: ±4 kV
• Certifications: CE, FCC, IC, SRRC
• NDAA Compliant: ✓
• UniFi Application Suite Support: Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓
• Managed UniFi Devices: 50+
• Managed Cameras: 15 × HD, 8 × 2K, 5 × 4K
• Managed Access Hubs: 50
• Simultaneous Users Connected: 500+
• Max. WAN Port Count: 6
• Default WAN Ports: (1) × 10G SFP+, (1) × 10 GbE RJ45

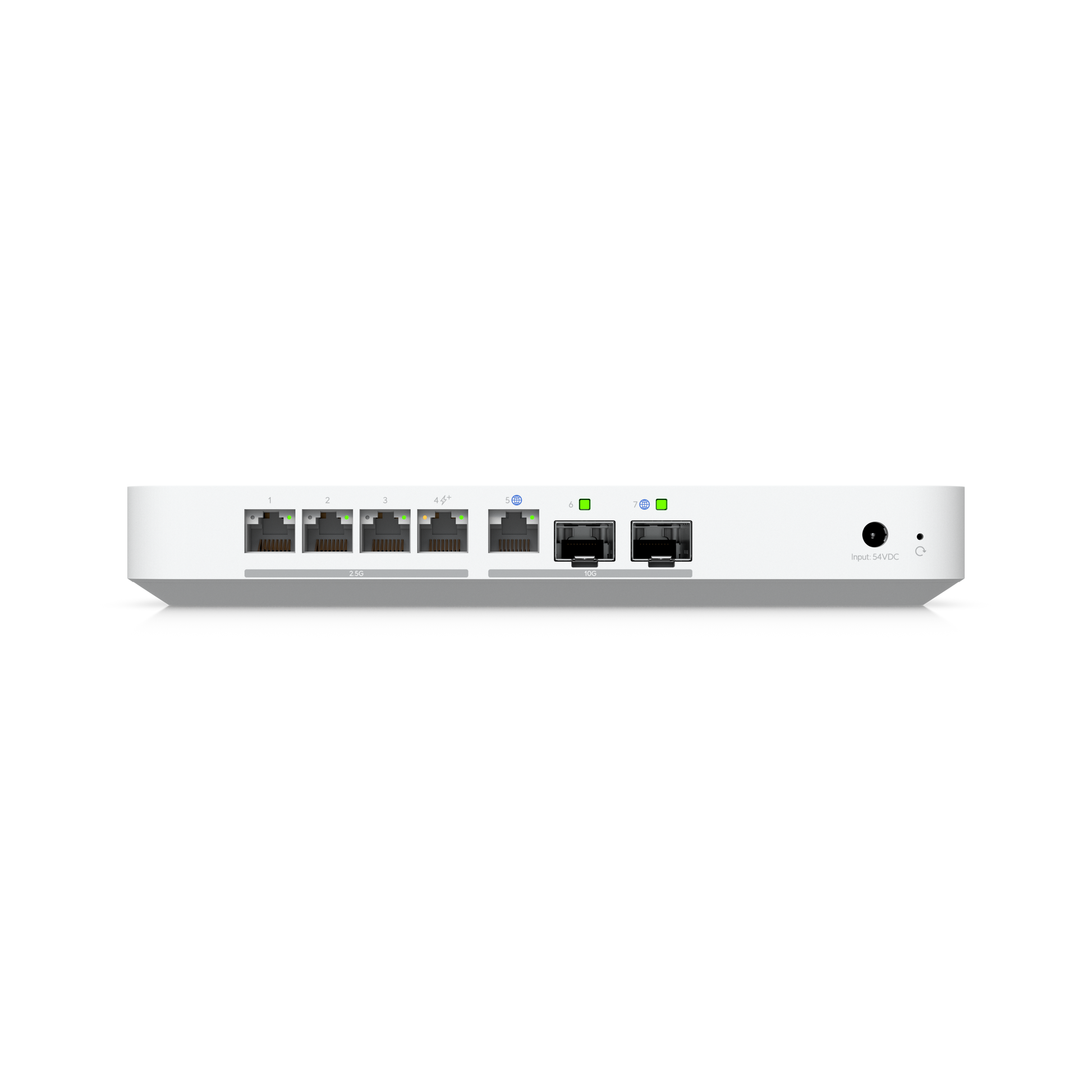

• Port Layout: 4 × 2.5 GbE RJ45 (2.5G/1G/100M/10M), 1 × 10 GbE RJ45 (10G/2.5G/1G), 2 × 10G SFP+ (10G/1G)
• MAC Address Table Size: 4,000
• IDS/IPS Throughput: 5 Gbps
• Security: Stateful Firewall ✓, Application-Aware Layer 7 Firewall ✓, DPI & Traffic Identification ✓, Zone-Based Firewall ✓, Content Filtering ✓, Intrusion Prevention (IPS/IDS) ✓, Ad Blocking ✓, IDS/IPS Signatures: 55,000+ with CyberSecure, VLAN/Subnet-Based Traffic Segmentation ✓
• VPN & SD-WAN: License-Free SD-WAN ✓, Site-to-Site VPN: Site Magic ✓, IPsec ✓, OpenVPN ✓, VPN Server: Identity Endpoint One-Click VPN ✓, Teleport Zero-Configuration VPN ✓, WireGuard ✓, OpenVPN ✓, L2TP ✓, VPN Client: OpenVPN ✓, WireGuard ✓
• Advanced Networking Features: Multi-WAN Load Balancing ✓, Dynamic Routing (OSPF) ✓, Advanced QoS ✓, Multicast DNS (mDNS) ✓, Advanced NAT ✓, Integrated RADIUS Server ✓, RADIUS over TLS (RadSec) ✓, Additional Internet Failover with UniFi LTE Backup ✓, Internet Quality and Outage Reporting ✓
• NVR Storage: Selectable NVMe SSD (up to 2 TB)
• PoE Budget: 30 W
• Voltage Range (PoE Mode): 50–57 V
• Max. Power Consumption: 29.4 W (excluding PoE output)
• Power Method: DC jack (54 V DC / 1.1 A)
• Power Supply: 54 V DC / 1.1 A (adapter included)
• Supported Voltage Range: 100–240 V AC
• Processor: Quad-core ARM Cortex-A73 @ 2.2 GHz
• System Memory: 3 GB
• Management Interfaces: Ethernet, Bluetooth
• LED Indicators: Ethernet ✓, SFP+ ✓
• Button: (1) Factory Reset
