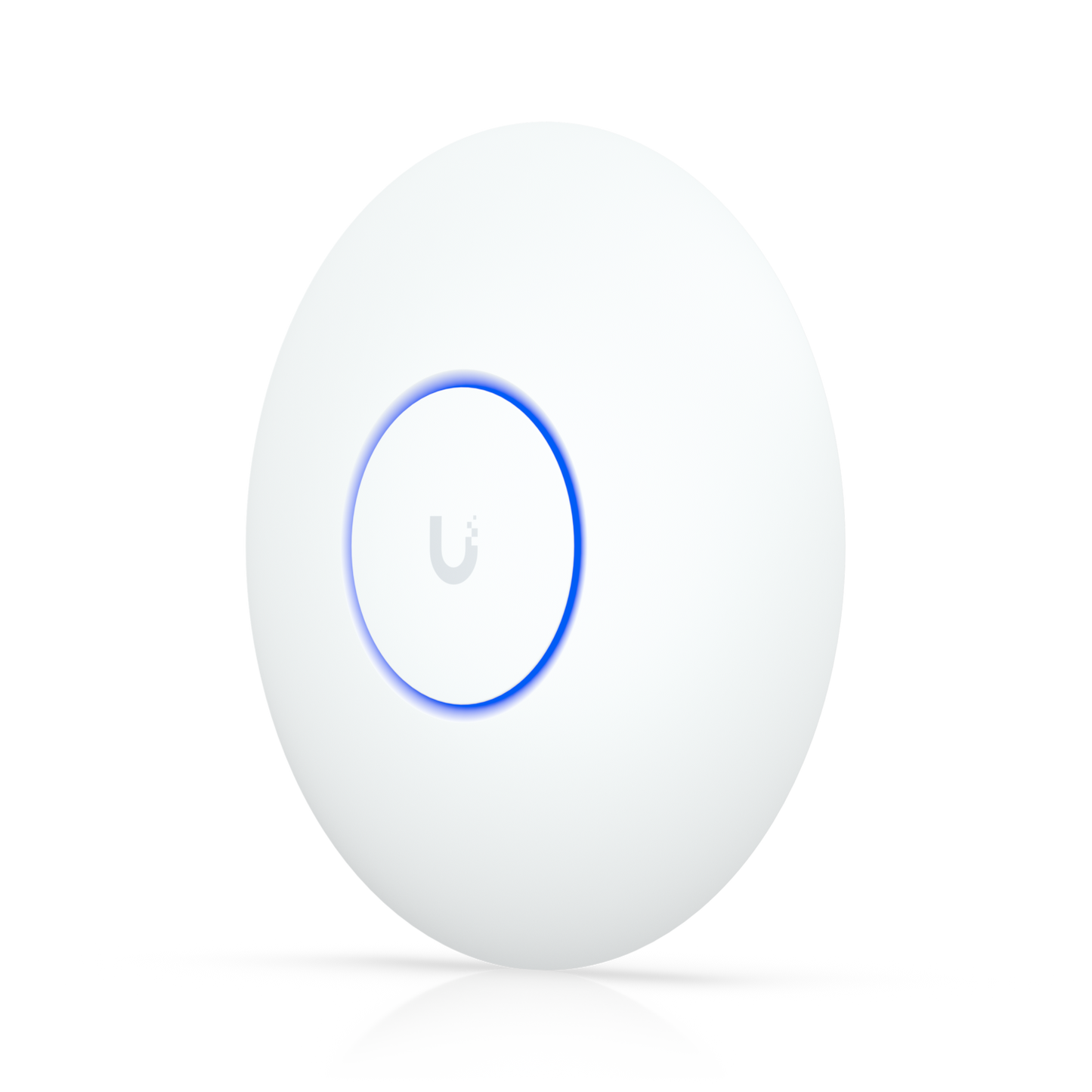

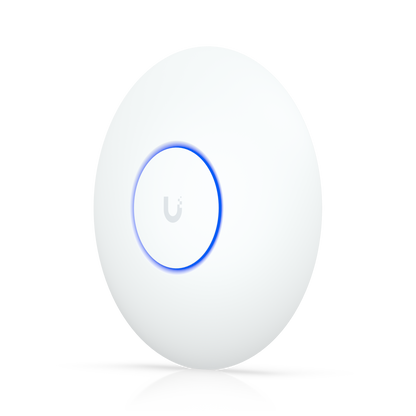

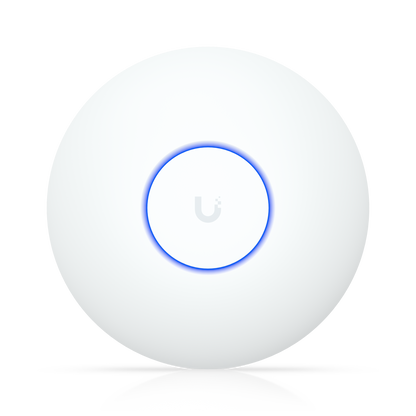

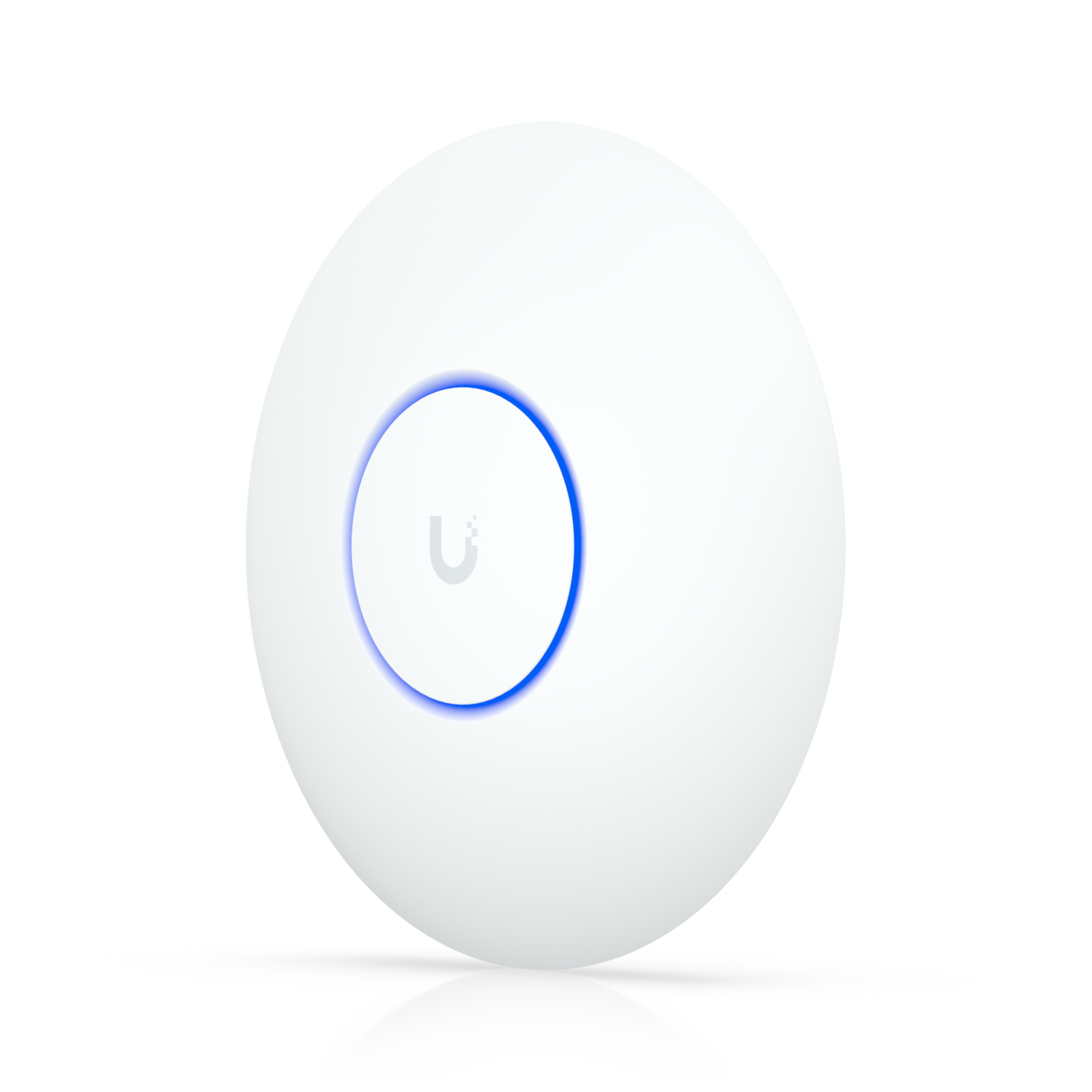

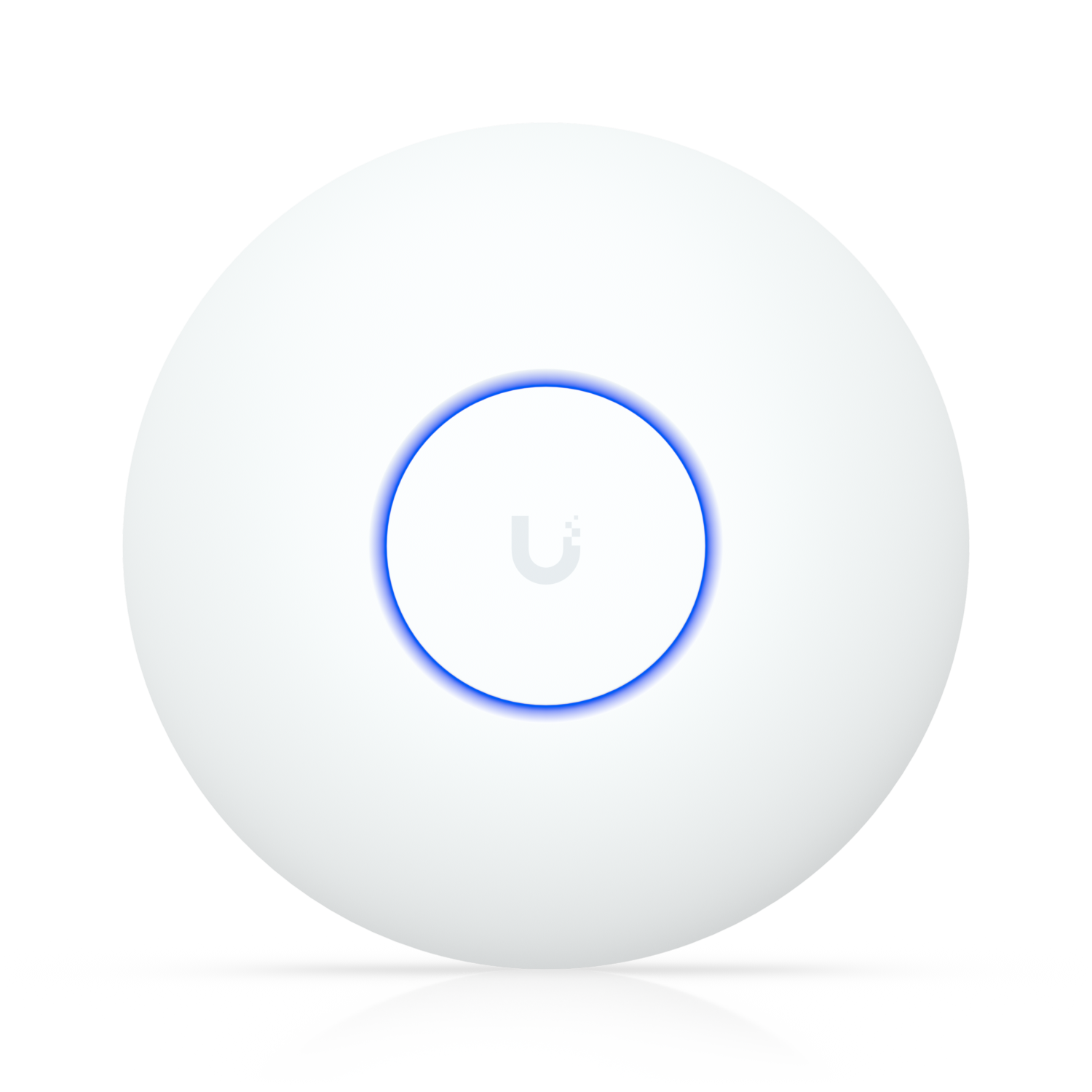

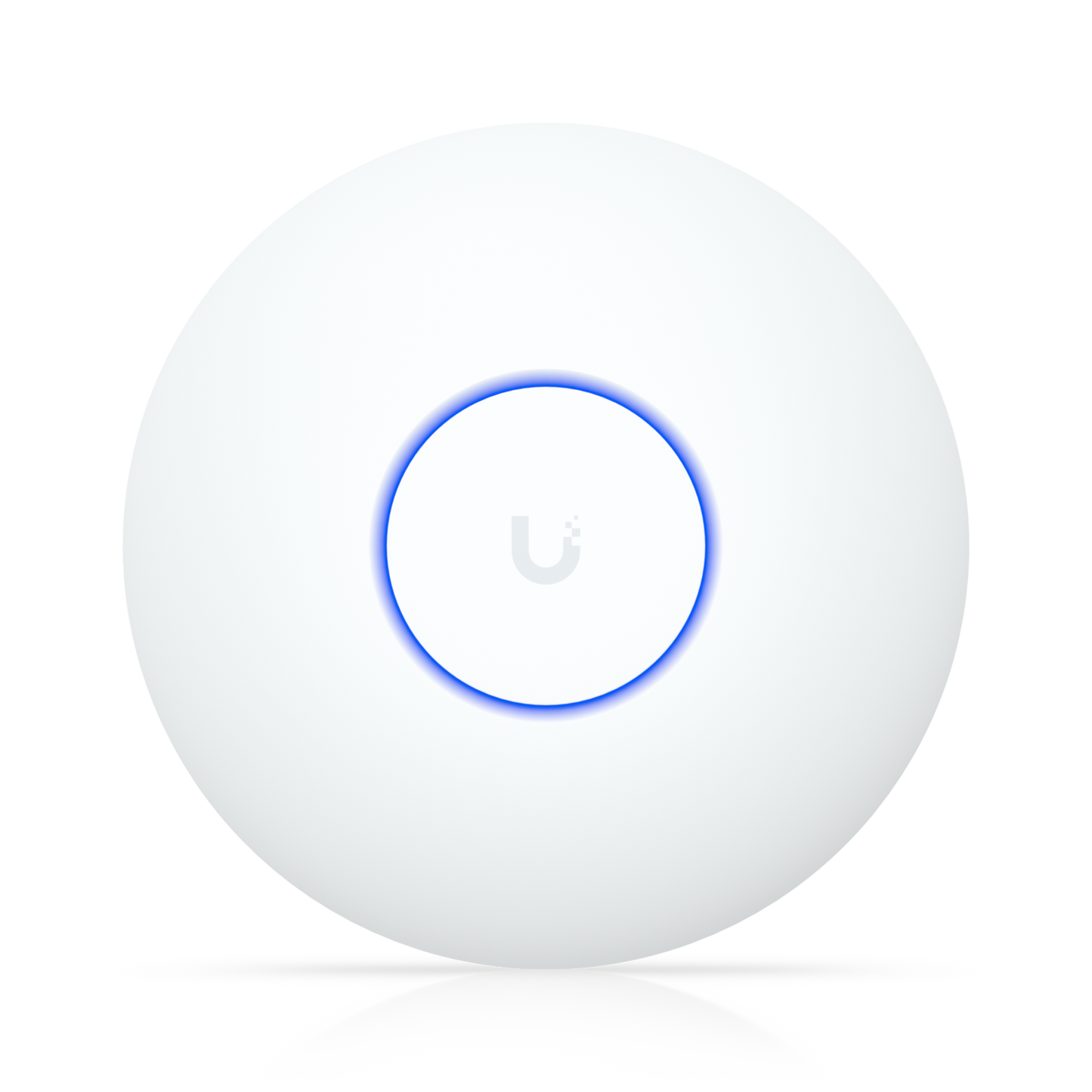

Ubiquiti UniFi U7 Lite Wi-Fi 7 Wireless Access Point (NHU-U7-LITE)

Ubiquiti UniFi U7 Lite Wi-Fi 7 Wireless Access Point (NHU-U7-LITE)

$239.00
$239.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dimensions: Ø171.5 x 33 mm (Ø6.8 x 1.3")
  • WiFi Standard: WiFi 7
  • Spatial Streams: 4
  • Coverage Area: 115 m² (1,250 ft²)
  • Max. Client Count: 200+
  • Uplink: 2.5 GbE
  • Mounting: Ceiling, Wall (Lite Mount Included)
  • Power Method: PoE
  • MIMO 5 GHz: 2 x 2 (DL/UL MU-MIMO)
  • MIMO 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate 5 GHz: 4.3 Gbps (BW240)
  • Max. Data Rate 2.4 GHz: 688 Mbps (BW40)
  • Antenna Gain 5 GHz: 5 dBi
  • Antenna Gain 2.4 GHz: 4 dBi
  • Max. TX Power 5 GHz: 24 dBm
  • Max. TX Power 2.4 GHz: 23 dBm
  • Max. BSSIDs: 8 per radio
  • Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240)
  • Supported Data Rates 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
  • Supported Data Rates 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
  • Supported Data Rates 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
  • Wireless Meshing: Yes
  • Band Steering: Yes
  • 802.11v BSS Transition Management: Yes
  • 802.11r Fast Roaming: Yes
  • 802.11k Radio Resource Management (RRM): Yes
  • Advanced Radio Management: Yes
  • Passpoint (Hotspot 2.0): Yes
  • Captive Hotspot Portal Custom Branding Landing Page: Yes
  • Voucher Authentication: Yes
  • Payment-Based Authentication: Yes
  • External Portal Server Support: Yes
  • Password Authentication: Yes
  • Guest Network Isolation: Yes
  • Private Pre-Shared Key (PPSK): Yes
  • WiFi Speed Limiting: Yes
  • Client Device Isolation: Yes
  • WiFi Schedules: Yes
  • RADIUS over TLS (RadSec): Yes
  • Dynamic RADIUS-assigned VLAN: Yes
  • Max. Power Consumption: 13W
  • Supported Voltage Range: 42.5—57V DC
  • Networking Interface: (1) 2.5 GbE RJ45 port
  • Weight: 313 g (11 oz)
  • Management: Ethernet
  • Enclosure Material: UV-stabilized polycarbonate
  • Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)
  • LEDs System: White/Blue
  • Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC, SRRC, Anatel: 02143-25-08356
  • Ambient Operating Temperature: -30 to 40°C (-22 to 104°F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • Software Requirements – UniFi Network: Version 9.0.114 and later
  • Mobile App iOS: Version 10.20.2 and later
  • Mobile App Android: Version 10.21.7 and later
