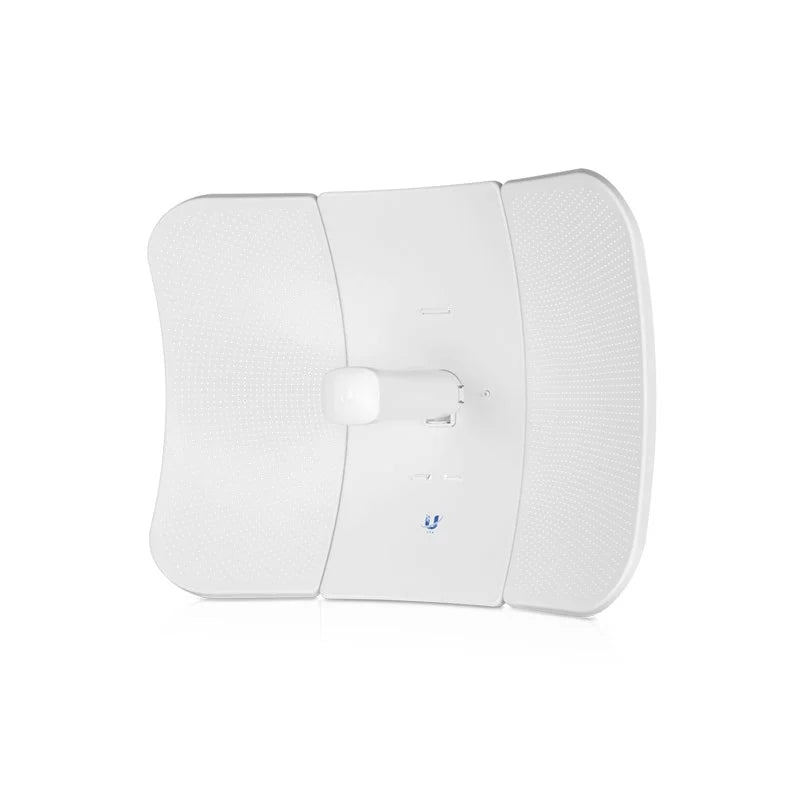

Ubiquiti LTU LR (UBNT-LTU-LR)

The Ubiquiti LTU LR (UBNT-LTU-LR) is a high-performance, long-range outdoor radio designed for point-to-point (PtP) and point-to-multipoint (PtMP) wireless connectivity. Utilizing Ubiquiti’s innovative LTU technology, the LTU LR is capable of providing exceptional throughput and range for demanding ISP and wireless network applications.

Key Features:

• Long-Range Connectivity: Offers superior range, making it ideal for long-distance PtP links and rural network extensions.
• LTU Technology: Utilizes Ubiquiti’s proprietary LTU protocol, which provides improved spectral efficiency, longer distances, and higher throughput compared to traditional 802.11-based systems.
• High Throughput: Delivers speeds of up to 1 Gbps, perfect for high-bandwidth applications.
• Optimized for Outdoor Use: Designed for outdoor environments with weatherproof housing and resistance to the elements, making it suitable for installations in challenging conditions.
• Advanced GPS Synchronisation: Features GPS support for synchronised transmission and reduced interference in multi-point deployments.
• Low Latency: Provides low-latency connections for better real-time data transfer, ideal for voice, video, and other latency-sensitive applications.
• Easy Setup and Management: The intuitive interface makes installation and configuration quick and straightforward. It can be managed through Ubiquiti’s LTU interface or the UISP platform.

Specifications:

• Frequency Range: 4900 MHz – 6000 MHz (depending on local regulations)
• Maximum Throughput: 1.5 Gbps
• Power Output: Up to 30 dBm
• Networking Interface: 1 x Gigabit Ethernet port
• Antenna Compatibility: Compatible with Ubiquiti’s high-gain airMAX antennas for optimal performance.
• Power Supply: 24V Passive PoE (Power over Ethernet)
• Power Consumption: 14W (Maximum)
• Operating Temperature: -40°C to 70°C
• Dimensions: 235 x 110 x 55 mm
• Weight: 630 g
• Weatherproof Rating: IP67

The Ubiquiti LTU LR (UBNT-LTU-LR) is a reliable and powerful outdoor radio for high-performance, long-range wireless links. With its long-distance capability, low-latency performance, and advanced LTU technology, it’s the ideal choice for ISP backbone connections, rural network extensions, and other long-distance wireless communication applications.
