Description

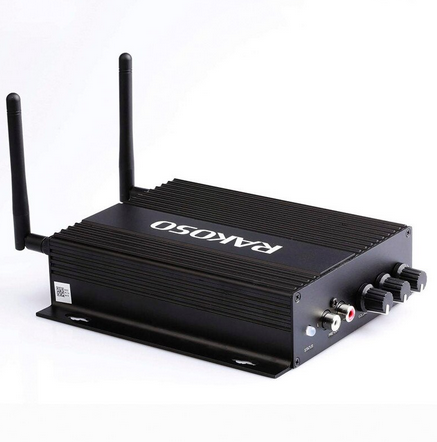

The Rakoso SA100 is an amplifier that enables your home stereo to stream sounds over WiFi, Airplay and Bluetooth 5.0 around your house and can be easily installed on wall or in ceiling. Integrated with rich interfaces, it is compatible with most of your home audio devices like audio receivers, subwoofers and TV.
Different from other amplifiers, regardless of 4ohm speakers or 8 ohm speakers, both can get a maximum 50W x2 powerful output at peak. Just simply switch the load option on SA100. *unplug the power before switching, or you will damage the device.
SA100 has multiple inputs and output interfaces like RCA input for audio receivers, subwoofer out for active subwoofer, optical in for TV audio and RCA output to your powerful amplifier. SA100 not only is an audio amplifier but also is an audio streamer.
Stream your favourite online music such as Spotify, Tidal, Deezer, Qobuz, Internet Radio, iheartRadio, Napster etc. Any time anywhere in your house with our 4stream App.
Different from other amplifiers, regardless of 4ohm speakers or 8 ohm speakers, both can get a maximum 50W x2 powerful output at peak. Just simply switch the load option on SA100. *unplug the power before switching, or you will damage the device.
SA100 has multiple inputs and output interfaces like RCA input for audio receivers, subwoofer out for active subwoofer, optical in for TV audio and RCA output to your powerful amplifier. SA100 not only is an audio amplifier but also is an audio streamer.
Stream your favourite online music such as Spotify, Tidal, Deezer, Qobuz, Internet Radio, iheartRadio, Napster etc. Any time anywhere in your house with our 4stream App.
| Interfaces | Network | Music Sources |
| DC input: -24V-6A |
Wireless connection: – IEEE 802.11 b/g/n 2.4G – Bluetooth 5.0 SBC/AAC |
Online streaming services: Spotify/Amazon Music/Tidal/Deezer Qobuz/Internet Radio/iheartRadio Napster, more coming in the near future |
| Analog audio input: -RCA x1 for analog input（1.2Vrms） -Optical x1 for digital input |
Wired connection : – Ethernet RJ45 |
Local storage: Music stored on the mobile device memory, NAS, USB pen drive |
| Analog audio output -RCA x1 for analogue output（1Vrms) -Subwoofer output x1 -Speaker output x1 for analogue output |
Audio Parameters | |
| USB host: to connect USB pen drive(1000 songs limited) |
Music format: FLAC/MP3/AAC/AAC+ ALAC/APE/WAV |
Speaker Power |
| Ethernet RJ45: for wired LAN cable to connect internet |
Audio decode: 24bit, 192kHz |
2x50W into 4Ω BTL load at 24V 2x50W into 8Ω BTL load at 24V (Boost) |
| LED indicators: to show the device status |
Frequency response: 20Hz-20kHz |
General |
| Reset: short press to reset the WiFi, long press to restore factory setting |
THD+N: 0.03% @1kHz 1W |
|
| IR receiver: for remote control |
Bluetooth distance: 10M |
Dimensions: 6.25 “ L x 5.75 “ W x 1.6 “H(15.8×14.6x4CM) |
| Antennas: for WiFi and Bluetooth |
Speaker impedance: 4-8Ω |
Weight: 0.6kg |
| Streaming Protocols | Control Applications | Working temperature: 0~40℃ |
| AirPlay, DLNA, UPnP, Spotify connect and Qplay | 4STREAM for iOS and Android based smart devices iTunes for MAC and Windows PC Foobar2000 and other compatible third-party apps |
