The Blackhawk Paddle is an antenna designed to connect directly to a 4G modem or any other wireless device that uses an SMA interface. It covers the global 3G and 4G LTE range from 700 to 2700 MHz, including NB-IoT and LTE-M bands such as B8, B20, and B28. Covering the 2.4 GHz range the antenna can also be used for Wi-Fi.
The Paddle incorporates an articulating hinge allowing it to be rotated to the appropriate polarisation and bent to a right angle to be positioned behind the device more conveniently.
Most importantly, the antenna has high radiated efficiency and high average gain, making it optimal for M2M and IoT applications. It can be used with the Cel-Fi GO repeater as a compact service antenna.

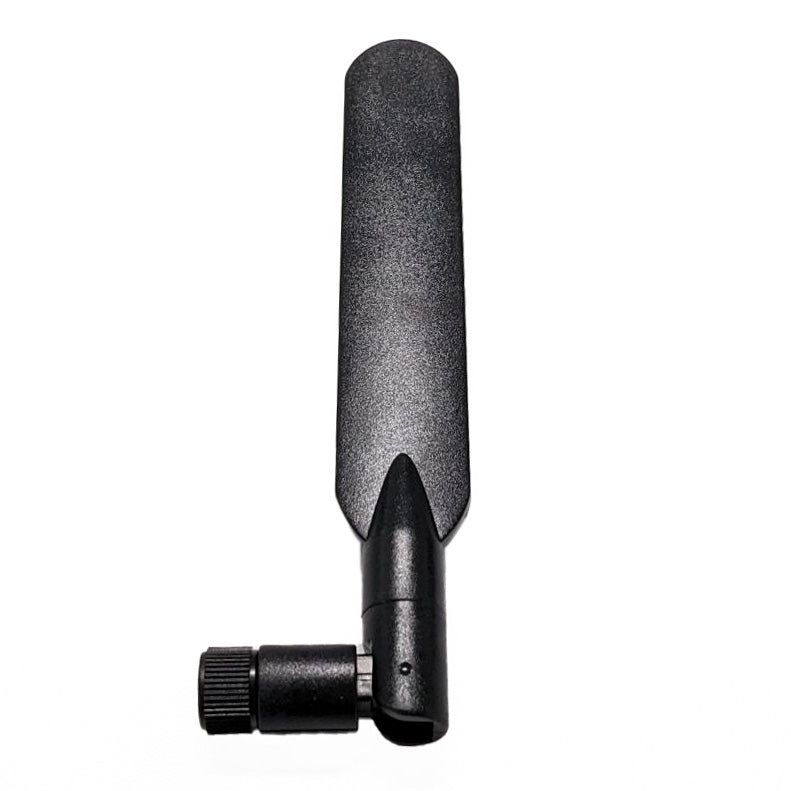

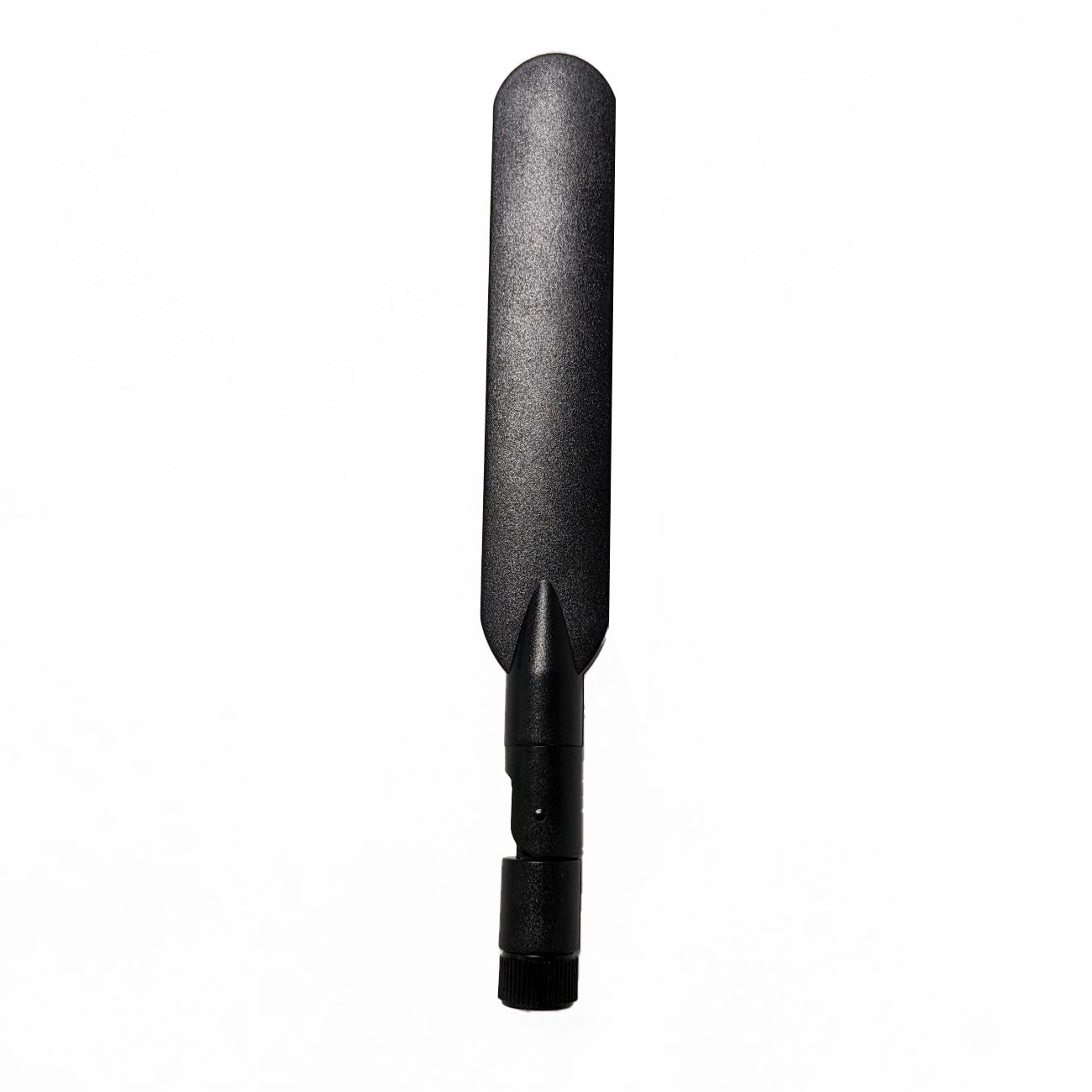

Blackhawk Paddle Hinged Antenna, 700 to 2700 MHz

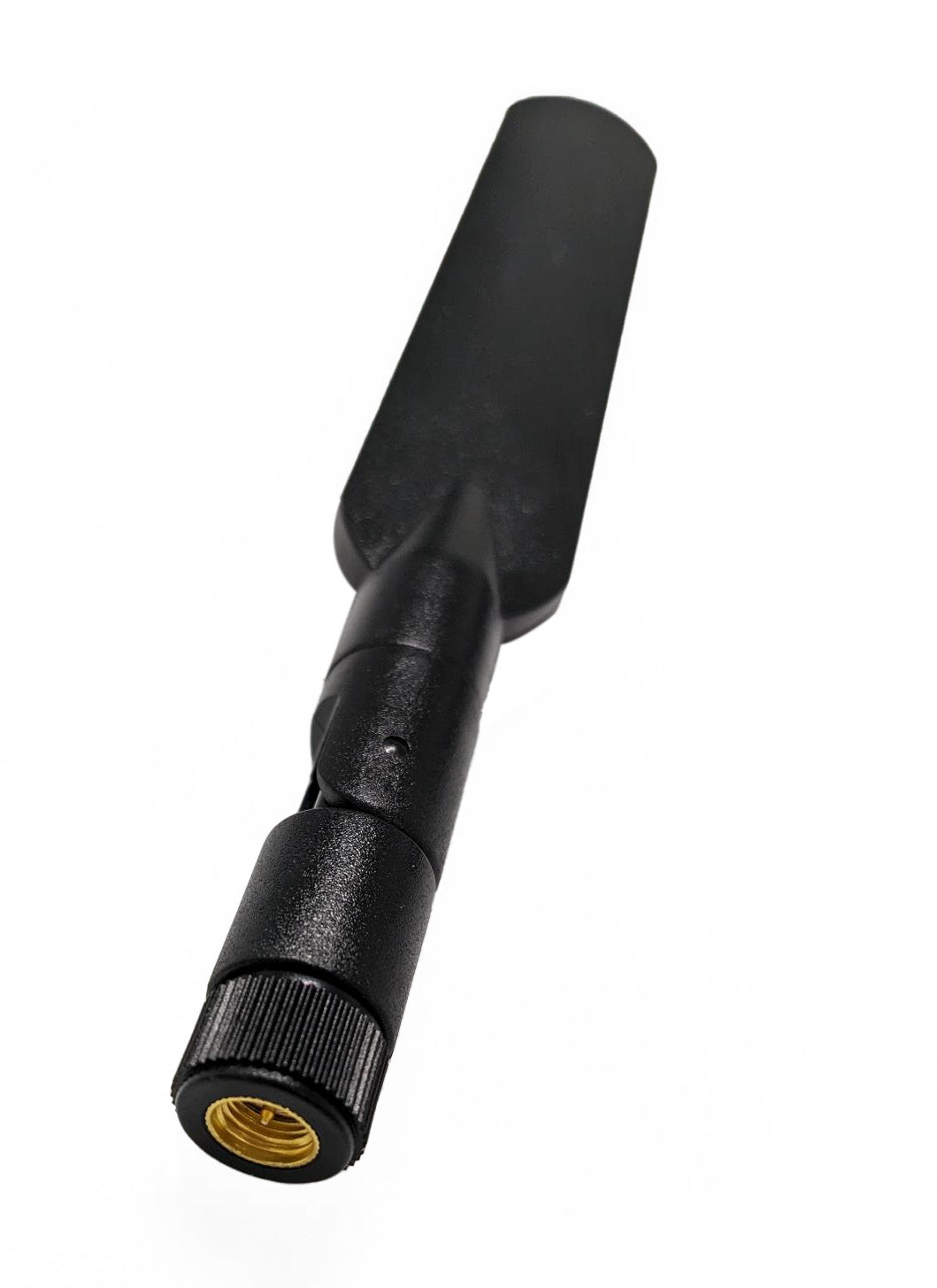

Connector: SMA Male with adjustable right angle base.
- 2 dBi gain across 698 to 960 MHz
- 2 dBi gain for 1710 to 2700 MHz
- 5 dBi gain for 2500 to 2700 MHz
