Blackhawk Wall Mount 698-2700 7/8dBi Panel Antenna
Blackhawk Wall Mount 698-2700 7/8dBi Panel Antenna
SKU:Cel-Fi-ANT-BH-WAL-698-2700-65
Low stock
Couldn't load pickup availability
Need help confirming compatibility?
Call or chat with an Access Antennas specialist.
- Australia-wide delivery
- Perth pickup & local support
- Secure checkout & warranty support
Product details
| Brand | Blackhawk |
|---|---|
| Product type | Antennas |
| SKU | Cel-Fi-ANT-BH-WAL-698-2700-65 |
| Condition | New |

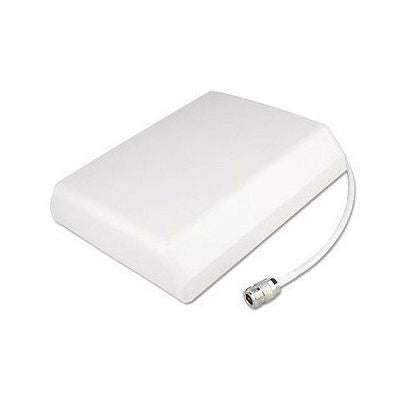

The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of what frequency they operate on.
Offering a 7dB gain this antenna is suitable as an indoor antenna or panel antenna, that can be mounted on a wall for repeater applications.
- Provides a 7dbi gain for 698-960 MHz
- Provides a 8dbi gain for 1710-2600 MHz
Main Technical Specifications:
- Model BH-WAL-698/2700-65
- Frequency range 698~960 MHz / 1710~2600MHz
- VSWR <1.5
- Input impendance 50Ω
- Gain 7 / 8dBi
- Polarization type Line polarization
- E-plane beamwidth 65°
- H-plane beamwidth 90°
- F/B ratio ≥23dB
- Max power 50W
- Lightning protection DC ground
- Connector Type N female
- RG58/U cable L=300mm
- Weight 600g
- Dimensions 210mm×180mm×44mm
- Radome material UV-Resistance ABS
- Radome color White
- Working temperature -40℃~+60℃
