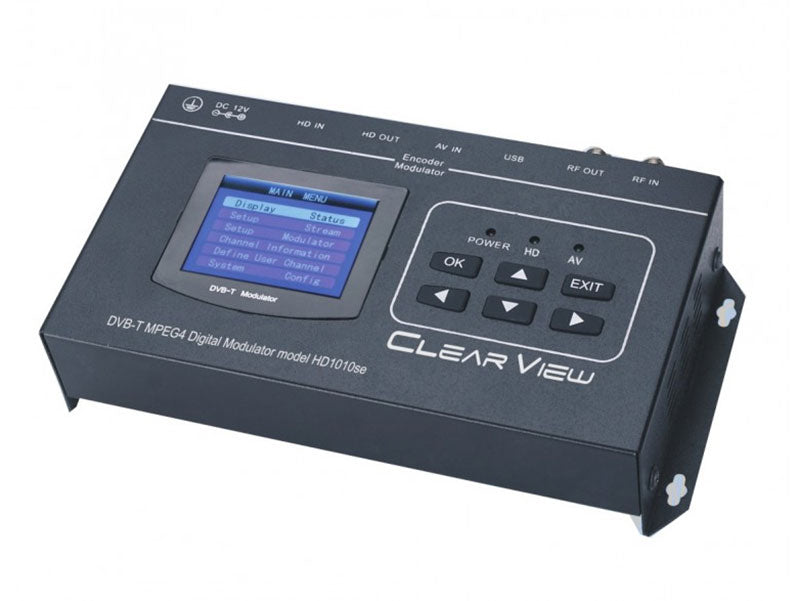

ClearView HD1010se MPEG4 Single AV/HDMI DVBT Modulator with HDMI Loop Out

The Clearview HD1010se is a single channel low cost digital modulator with HDMI or CVBS inputs, plus a HDMI Loop output. This modulator will give a DVBT MPEG4 RF Output

Specifications

• HDMI Encoding Section
• Encoding: MPEG-4 AVC/H.264
• Video Resolution: 1920 x 1080p@60, 1920 x 1080p@50, 1920 x 1080i@60,
  1920 x 1080i@50, 1280 x 720p@60, 1280 x 720p@50
• Aspect ratio: 16:9, 4:3
• Bit rate: 1.000-18.000 Mbps, Auto.
• Audio Encoding: MPEG1 Layer II
• Sample rate: 48KHz
• Bit rate: 64, 96, 128, 192, 256, 320kbps
• CVBS Encoding Section
• Input: PAL, NTSC
• DVB-T Modulator Section
• Standard: DVB-T COFDM
• Bandwidth: 6M, 7M, 8M
• Constellation: QPSK, 16QAM, 64QAM
• Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
• Guard interval: 1/32, 1/16, 1/8, 1/4
• Transmission mode: 2K, SK
• MER: >31dB
• RF frequency: 50-950 MHz
• RF output level: 0- +6dBm
• System Upgrade: USB
• Power supply: DC 12V
• Operation temperature: 0- to 45 deg C
