Digitek Mini Log VHF TV Antenna | 12-Element Perth Metro

The Digitek Mini Log VHF TV Antenna is a compact 12-element log-periodic antenna designed for reliable digital television reception in strong inner-metropolitan signal areas. Covering VHF Band 3 channels 6–12, it combines 11.5 dBi forward gain with a lightweight folding design that is easy to transport, handle and install.

Why It Is a Strong Choice for Perth Metro

Perth’s main Bickley and Carmel television transmission sites carry the major metropolitan services across VHF Band 3 channels 6, 7, 8, 11 and 12. Because this Digitek antenna is purpose-built for channels 6–12, it is well matched to many Perth metropolitan homes receiving their signal from those main transmitter sites.

• Purpose-built for Perth’s main metropolitan VHF channel range
• 11.5 dBi gain for strong, stable digital reception
• Compact size without the bulk of a large fringe antenna
• Excellent choice for homes with good line-of-sight or strong local coverage
• Suitable for new installations and replacing ageing VHF antennas

Important: Antenna requirements vary by suburb, terrain and the transmitter serving your property. Some Perth locations use UHF retransmission sites, so contact our team with your suburb or postcode if you are unsure.

Ideal For

• Inner-metropolitan Perth homes
• Properties receiving VHF Band 3 television services
• Replacing older or weather-damaged rooftop antennas
• Homes experiencing pixelation, missing channels or unstable reception
• Professional antenna installers
• Compact residential and light-commercial installations

Reliable VHF Digital TV Performance

The 12-element log-periodic design provides consistent performance across the Australian VHF Band 3 television range. Its directional reception pattern helps focus on the intended transmitter while reducing unwanted signals arriving from behind the antenna.

• VHF Band 3 coverage
• Australian television channels 6–12
• 11.5 dBi forward gain
• Greater than 20 dB front-to-back ratio
• Designed for Australian digital television transmissions

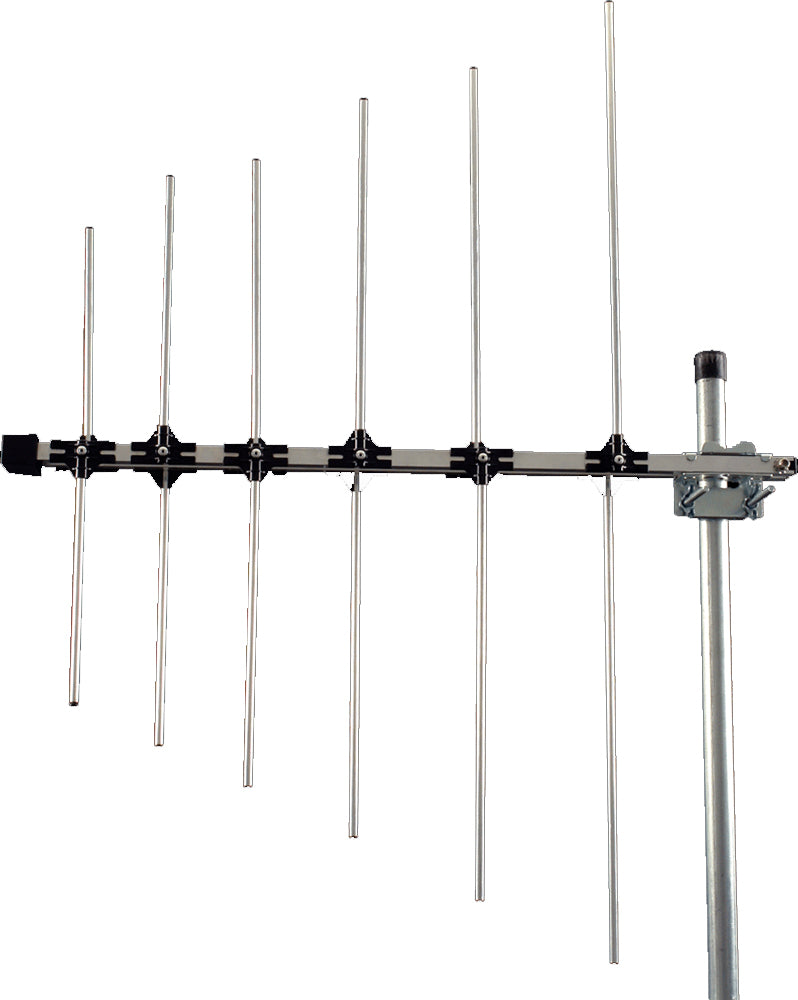

Compact Folding Design

The folding elements make the antenna easier to store, transport and carry onto the roof. Once unfolded, the lightweight aluminium construction provides a practical balance of strength, reception performance and installation convenience.

• Folding elements for easier handling and transport
• Lightweight 0.65 kg construction
• Compact 655 mm boom length
• F-type connection for standard TV coaxial cable
• Pre-fitted mounting hardware

Designed for Australian Conditions

Designed and engineered in Australia, the Mini Log uses corrosion-resistant aluminium and UV-stabilised plastics for dependable outdoor service in Australian conditions.

• Corrosion-resistant aluminium construction
• UV-stabilised plastic components
• Horizontal or vertical mounting capability
• Rubber weather boot for the F-connector
• Three-year manufacturer’s warranty

Technical Specifications

• Antenna type: Log periodic
• Elements: 12
• Band: VHF Band 3
• Channels: 6–12
• Forward gain: 11.5 dBi
• Front-to-back ratio: Greater than 20 dB
• Connection: F-type
• Dimensions: 655 × 850 × 70 mm (L × W × H)
• Weight: 0.65 kg
• Materials: Aluminium and UV-stabilised plastics
• Mounting: Horizontal or vertical

What’s Included

• Digitek 12-element Mini Log VHF antenna
• Pre-fitted V-block and U-bolt mounting hardware
• Rubber F-connector weather boot

Frequently Asked Questions

Is this antenna suitable for Perth?

Yes, it is a very good option for many Perth metropolitan properties receiving the main VHF Band 3 broadcasts from the Bickley or Carmel transmitter sites. Suitability still depends on your suburb, surrounding terrain, roof height and local signal conditions.

Will it receive all Perth free-to-air channels?

It covers VHF channels 6–12, which carry the major free-to-air services from Perth’s main metropolitan VHF transmission sites. Properties served by a UHF retransmission site will require a suitable UHF or combination antenna instead.

Is this a UHF antenna?

No. This model is designed specifically for VHF Band 3. If your local transmitter broadcasts on UHF, contact us before ordering so we can recommend the correct antenna.

Does it include a 4G or 5G filter?

No integrated mobile interference filter is specified for this model. Its strength is its purpose-built VHF Band 3 design, compact size and strong metropolitan reception performance.

Does it include mounting hardware?

Yes. The V-block and U-bolt are fitted to the antenna, and a rubber weather boot is included for the F-type connection.

Need Help Choosing?

Send us your Perth suburb or postcode and our team can help determine whether this VHF antenna is the right match for your local transmitter and reception conditions.
