Description

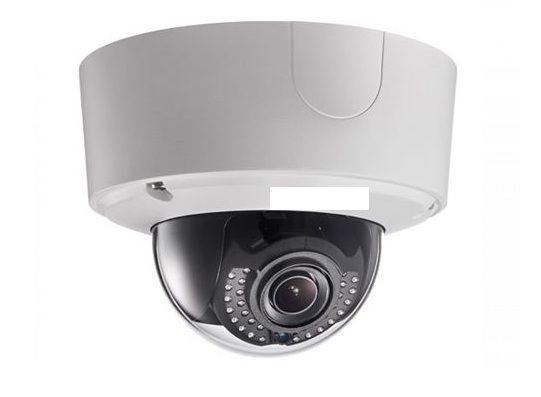

Features Model:DS-2CD4526FWD-IZ Camera Image Sensor: 1/1.8" Progressive Scan CMOS Signal System: PAL/NTSC Min. Illumination: 0.002 Lux @(F1.2,AGC ON), 0 Lux with IR 0.0002 Lux @(F1.4,AGC ON), 0 Lux with IR Shutter time: 1 s to 1/100,000 s Lens: 2.8-12mm @ F1.4, 92°~ 32° Lens Mount: φ14 Auto Iris: DC drive Adjustment Range: Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° Day& Night: IR cut filter with auto switch Wide Dynamic Range: 120 dB Digital noise reduction: 3D DNR Focus: Motorized VF lens(-Z model) Compression Standard Video Compression: H.264 / MPEG4 / MJPEG Bit Rate: 32 Kbps ~ 16 Mbps Audio Compression: G.711/G.726/MP2L2 Triple Streams: Yes Image Max. Image Resolution: 1920 x 1080 Frame Rate: 50Hz: 50fps(1920 × 1080) /(1280 × 960)/(1280 × 720) 60Hz: 60fps(1920 × 1080) /(1280 × 960)/(1280 × 720) Third Stream: Independent with Main Stream and Sub Stream, up to 50Hz: 25fps(1920 × 1080) ; 60Hz: 30fps (1920 × 1080) Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser BLC: Yes, zone configurable Smart Defog: Support ROI: Support Picture Overlay: 128 × 128, BMP 24bit, zone configurable Network Network Storage: NAS Alarm Trigger: Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional) Security: User Authentication, Watermark, IP address filtering, anonymous access System Compatibility: ONVIF, PSIA, CGI, ISAPI Interface Audio Input: 1-ch 3.5 mm audio interface, MIC IN/LINE IN Audio Output: 1-ch 3.5mm audio interface (line level, 600 Ω) Communication Interface: 1 RJ45 10M / 100M ethernet interface and 1 RS-485 interface Alarm Input: 1 Alarm Output: 1 Video Output: 1Vp-p Composite Output (75 Ω, BNC) On-board storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB Reset Button: Yes General Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) Power Supply: 24 VAC ± 10% / PoE (802.3af) Power Consumption: Max: 12W Weather Proof: IP66 IR Range: Up to 30m Dimensions: Φ164.9 × 127 mm(Φ6.49” ×5”) Weight: 2100g (4.62 lbs)
