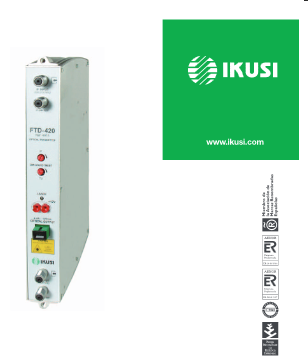

Ikusi FTD-420 Optical Transmitter
Solution for distribution of terrestrial TV and satellite IF signals
(analog and digital) over large collective installations.
Connection of singlemode type optical fibre.
Ultralineal, APC-controlled, 4 mW DFB (Distributed Feedback) laser.
Fully compatible with PAL, SECAM, NTSC, FM, DVB-S,
DVB-T, DVB-C and other standards.
TV and SAT-IF separate ways with very high RF amplification gain.
Independent OMI settings for TV and SAT-IF
• 1 TV input (45-862 MHz) — 1 SAT-IF input (950-2150 MHz)
— 1 Optical output (1310 nm)
• Fully compatible with PAL, SECAM, NTSC, FM, DVB-S, DVB-T,
DVB-C and other standards.
