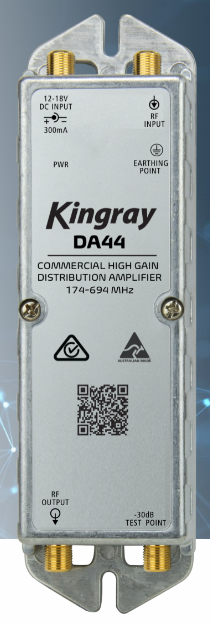

Kingray DA44 44dB TV Distribution Amplifier
Kingray DA44 44dB TV Distribution Amplifier
SKU:Amp-Kray-DA44
Low stock
Couldn't load pickup availability
Need help confirming compatibility?
Call or chat with an Access Antennas specialist.
- Australia-wide delivery
- Perth pickup & local support
- Secure checkout & warranty support
Product details
| Brand | Kingray |
|---|---|
| Product type | Distribution Amplifiers |
| SKU | Amp-Kray-DA44 |
| Condition | New |
The Kingray DA44 is a high-gain distribution amplifier for terrestrial digital television systems. Gain and slope controls help installers balance the network, while its shielded die-cast housing limits interference.
Features
- Frequency range: 174–694 MHz
- Maximum gain: 44 dB
- 10 dB mid-stage gain control; 0–10 dB slope adjustment
- Single RF input and output; −30 dB test point
- F-type connections and built-in 4G/LTE filtering
- 18 V DC operation; 300 mA consumption
Power supply sold separately. Kingray specifies PSK18M or PSK182F. Includes amplifier, mounting screws and manual.
