Kingray KAT8F 8-Way Active Tap – TV and Satellite
Kingray KAT8F 8-Way Active Tap – TV and Satellite
SKU:stacker-tap-Kingray-KAT8F
Low stock
Couldn't load pickup availability
Need help confirming compatibility?
Call or chat with an Access Antennas specialist.
- Australia-wide delivery
- Perth pickup & local support
- Secure checkout & warranty support
Product details
| Brand | Kingray |
|---|---|
| Product type | TV and Satellite Active Taps |
| SKU | stacker-tap-Kingray-KAT8F |
| Condition | New |

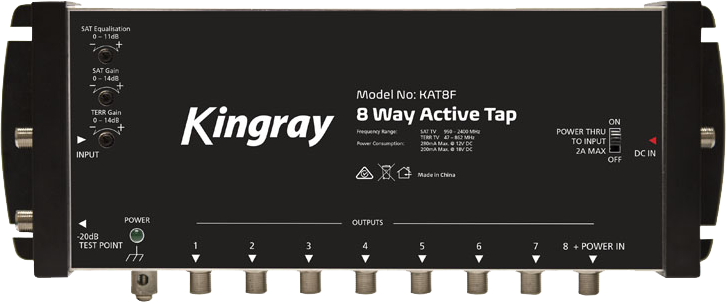

Distribute terrestrial and satellite signals across 8 outputs with the Kingray KAT8F active tap. Designed for Multistacker installations, it provides adjustable gain and satellite equalisation for balancing a distribution system.
- One input and 8 outputs with F-type connections
- Terrestrial frequency range: 47–862MHz
- Satellite frequency range: 950–2400MHz
- Maximum gain: 10–14dB terrestrial; 14dB satellite
- Gain adjustment: 14dB on both bands
- Terrestrial equalisation: fixed 4dB
- Satellite equalisation adjustment: 11dB
- 20dB test point
- Can be powered remotely using a PIK2400 injector and a suitable power supply
Includes the active tap, installation manual and mounting screws. Power supply is sold separately; Kingray lists the PSK18M as a suitable option.
