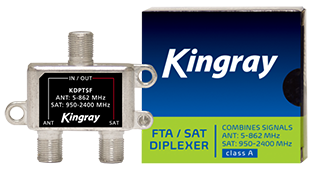

Kingray KDPTSF TV and Satellite Diplexer – F-Type
Kingray KDPTSF TV and Satellite Diplexer – F-Type
SKU:Diplexer-Kingray-KDPTSF
Low stock
Couldn't load pickup availability
Need help confirming compatibility?
Call or chat with an Access Antennas specialist.
- Australia-wide delivery
- Perth pickup & local support
- Secure checkout & warranty support
Product details
| Brand | Kingray |
|---|---|
| Product type | TV and Satellite Diplexers |
| SKU | Diplexer-Kingray-KDPTSF |
| Condition | New |
The Kingray KDPTSF combines terrestrial TV and satellite signals onto one coaxial cable, or separates the two bands at the receiving end. Its compact screened housing uses F-type connections.
- Terrestrial TV band: 5–862MHz
- Satellite band: 950–2400MHz
- Separate TV and satellite ports plus one combined port
- DC power pass on the satellite path
- A-class screening
- Foxtel approved
Supplied with mounting screws.
