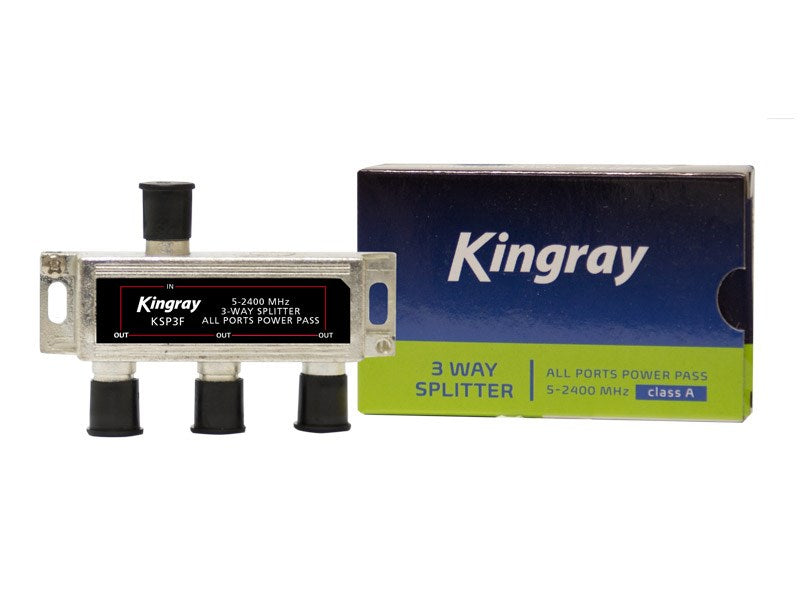

Kingray KSP3F 3-Way TV Antenna Splitter – 5–2400MHz
Kingray KSP3F 3-Way TV Antenna Splitter – 5–2400MHz
SKU:Splitter-Kingray-3Way-KSP3F
Low stock
Couldn't load pickup availability
Need help confirming compatibility?
Call or chat with an Access Antennas specialist.
- Australia-wide delivery
- Perth pickup & local support
- Secure checkout & warranty support
Product details
| Brand | Kingray |
|---|---|
| Product type | TV and Satellite Splitters |
| SKU | Splitter-Kingray-3Way-KSP3F |
| Condition | New |
Distribute terrestrial TV or satellite signals to 3 outputs with the Kingray KSP3F. This F-type splitter covers 5–2400MHz and supports DC power pass from the output ports to the input.
- One input and 3 outputs
- Frequency range: 5–2400MHz
- F-type connections
- Power pass on all output ports to the input
- Insertion loss: 7.5dB at 5MHz to 10dB at 2400MHz
- Return loss: greater than 10dB
- Maximum DC throughput: 2A
- A-class screened housing
Supplied with mounting screws.
