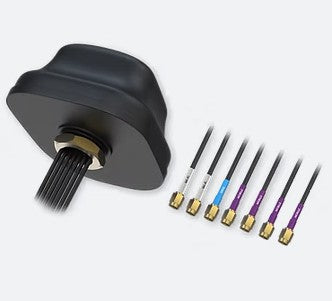

Teltonika 5G Combo MIMO MOBILE/GNSS/WIFI ROOF SMA Antenna

5G Mobile MIMO Antenna

• Frequency range: 617–960 / 1710–2690 / 2900–4200 MHz
• Polarization: Linear
• Gain: 4.0 dBi
• V.S.W.R: ≤3.0
• Impedance: 50 Ω
• Connector type & count: 4× SMA Male

GNSS Antenna

• Frequency range: 1164–1300 / 1559–1610 MHz
• Polarization: RHCP
• Supply voltage: 3–12 VDC
• LNA Gain: 40 ± 2 dB
• V.S.W.R: ≤2.0
• Impedance: 50 Ω
• Current consumption: ≤60 mA
• Connector type & count: SMA Male

WiFi MIMO Antenna

• Frequency range: 2400–2483.5 / 4900–5925 MHz
• Polarization: Linear
• Gain: 4.0 dBi
• V.S.W.R: ≤2.5
• Impedance: 50 Ω
• Connector type & count: 2× RP SMA Male

Mechanical / Environmental

• Mounting method: Screw
• Radome ingress protection rating: IP67 (excluding cable outlet)
• Radome material: UV-Resistant ABS/PC
• Weight: 960 ± 30 g
• Housing dimensions: 189 × 182 × 85 mm
• Cable: 7 × LMR100, 3000 mm
• Recommended mounting dimensions: Hole ø28 mm, panel thickness MAX 8 mm
• Operating temperature: -40°C to +85°C
• RoHS compliant: ✓
