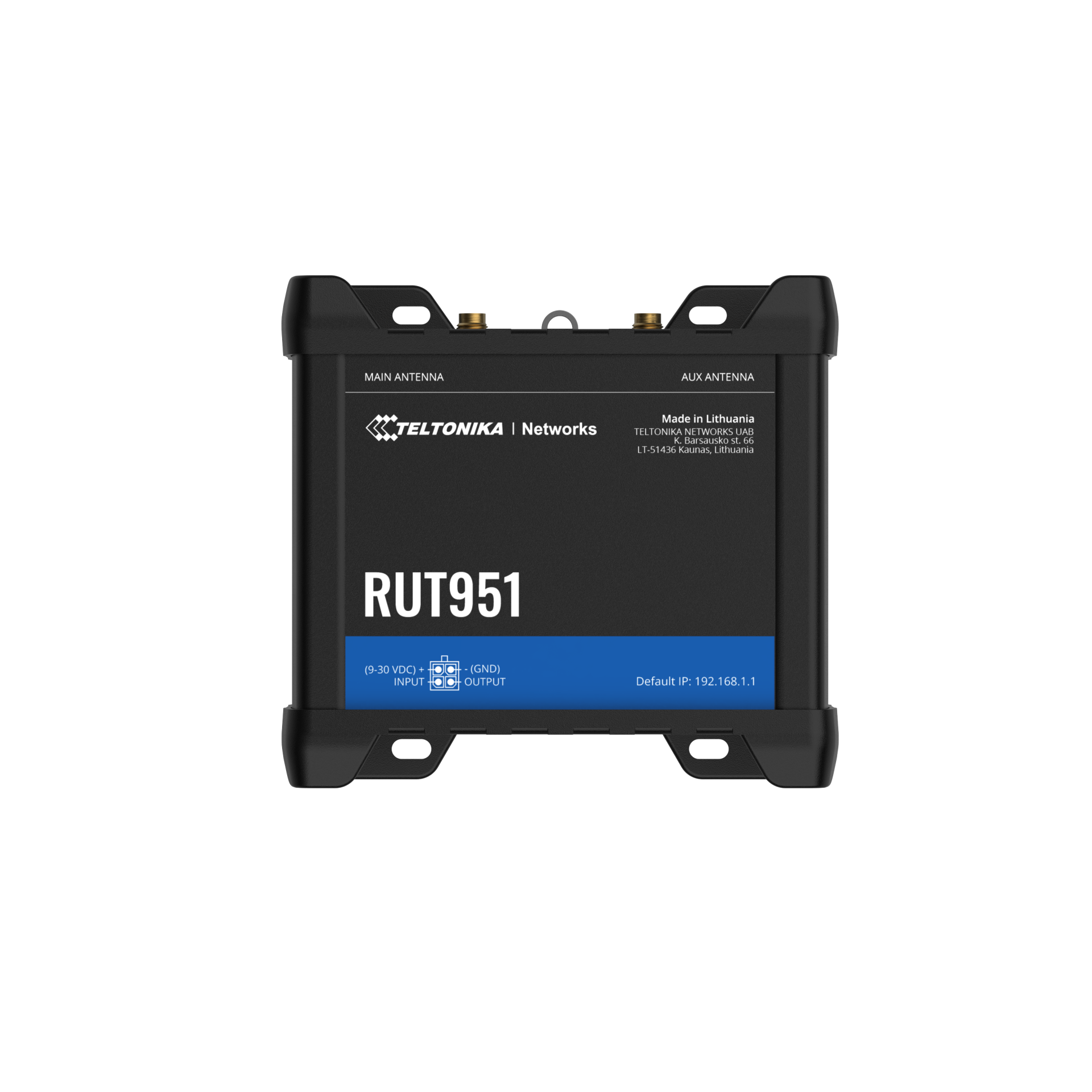

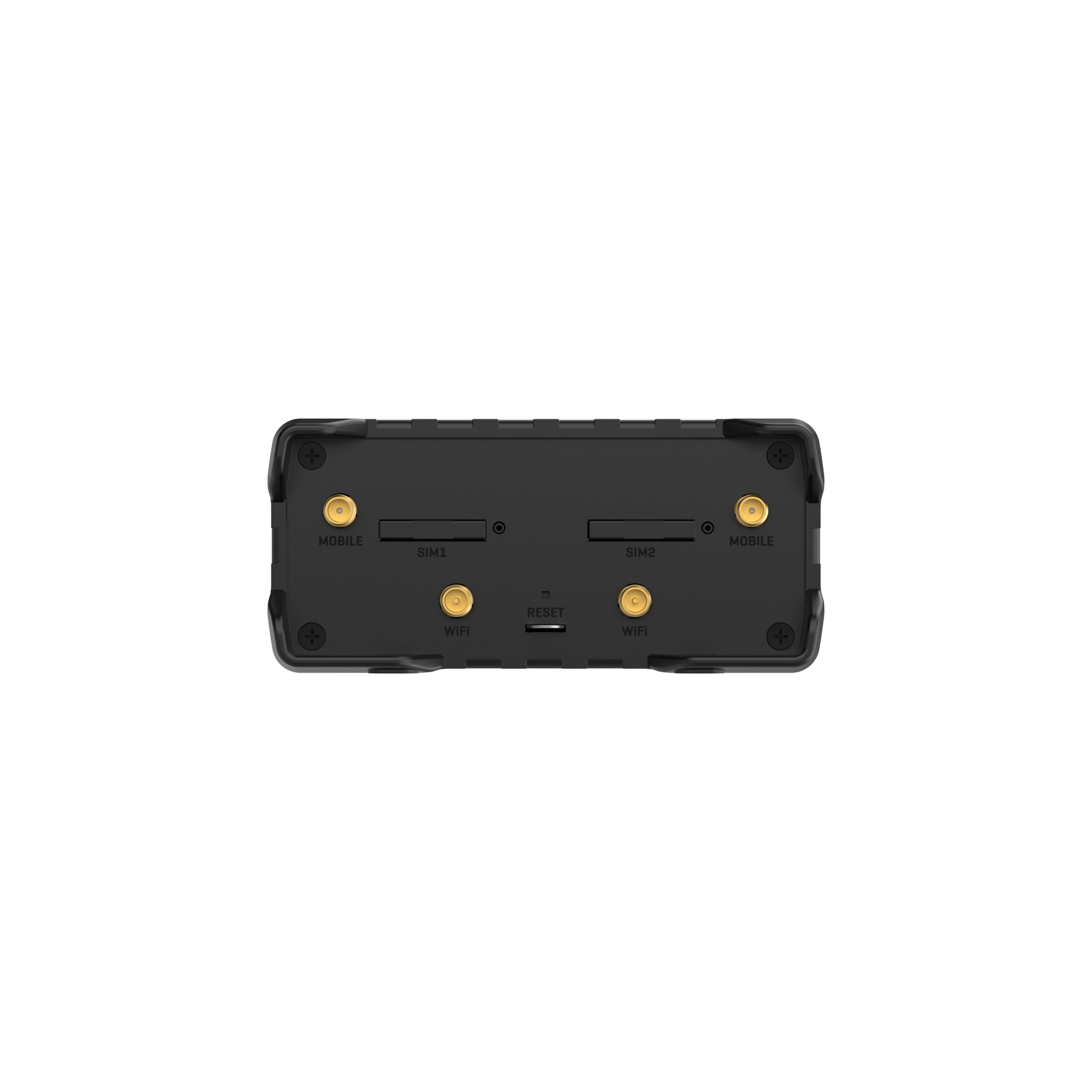

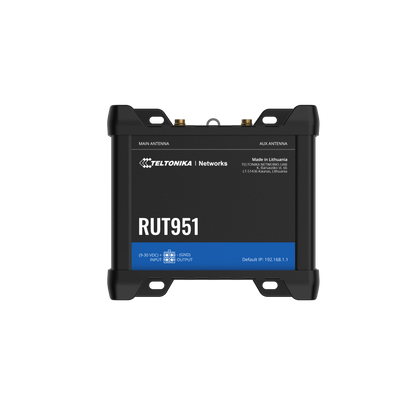

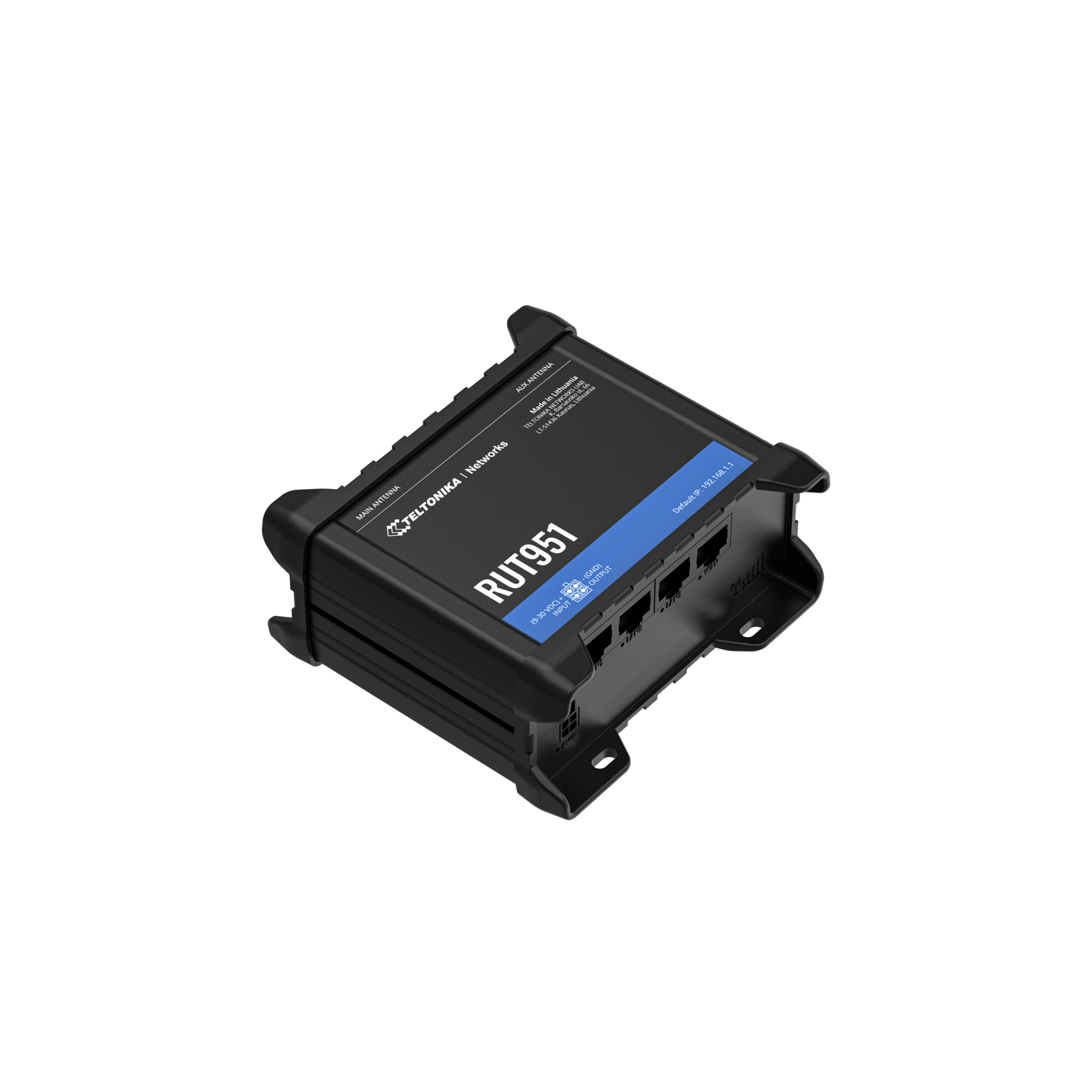

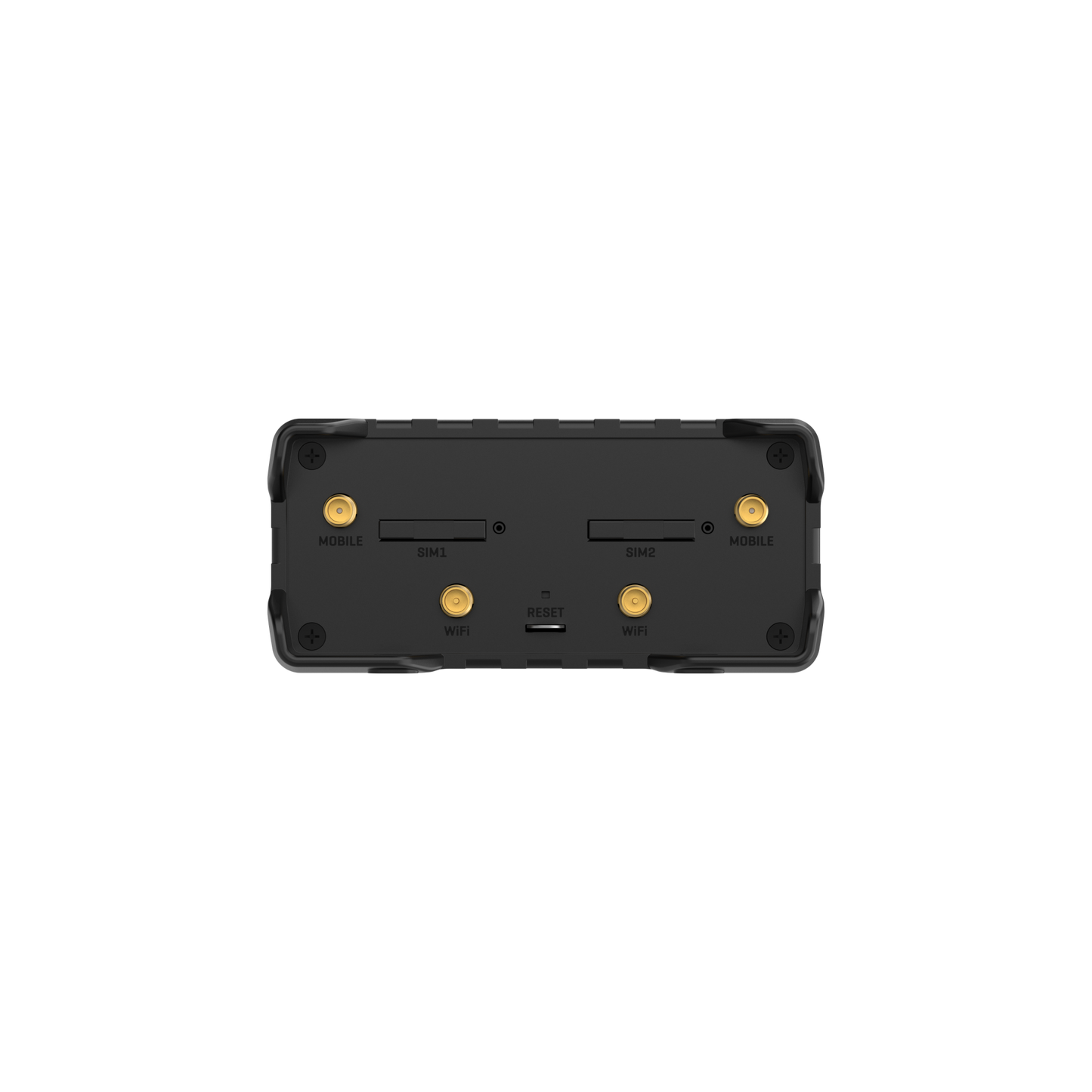

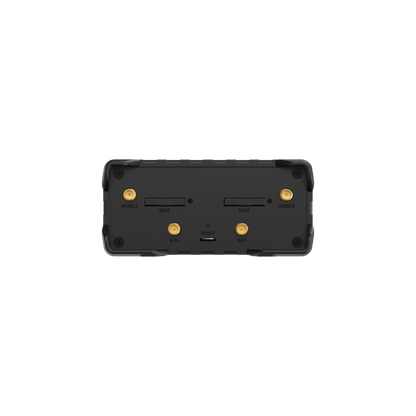

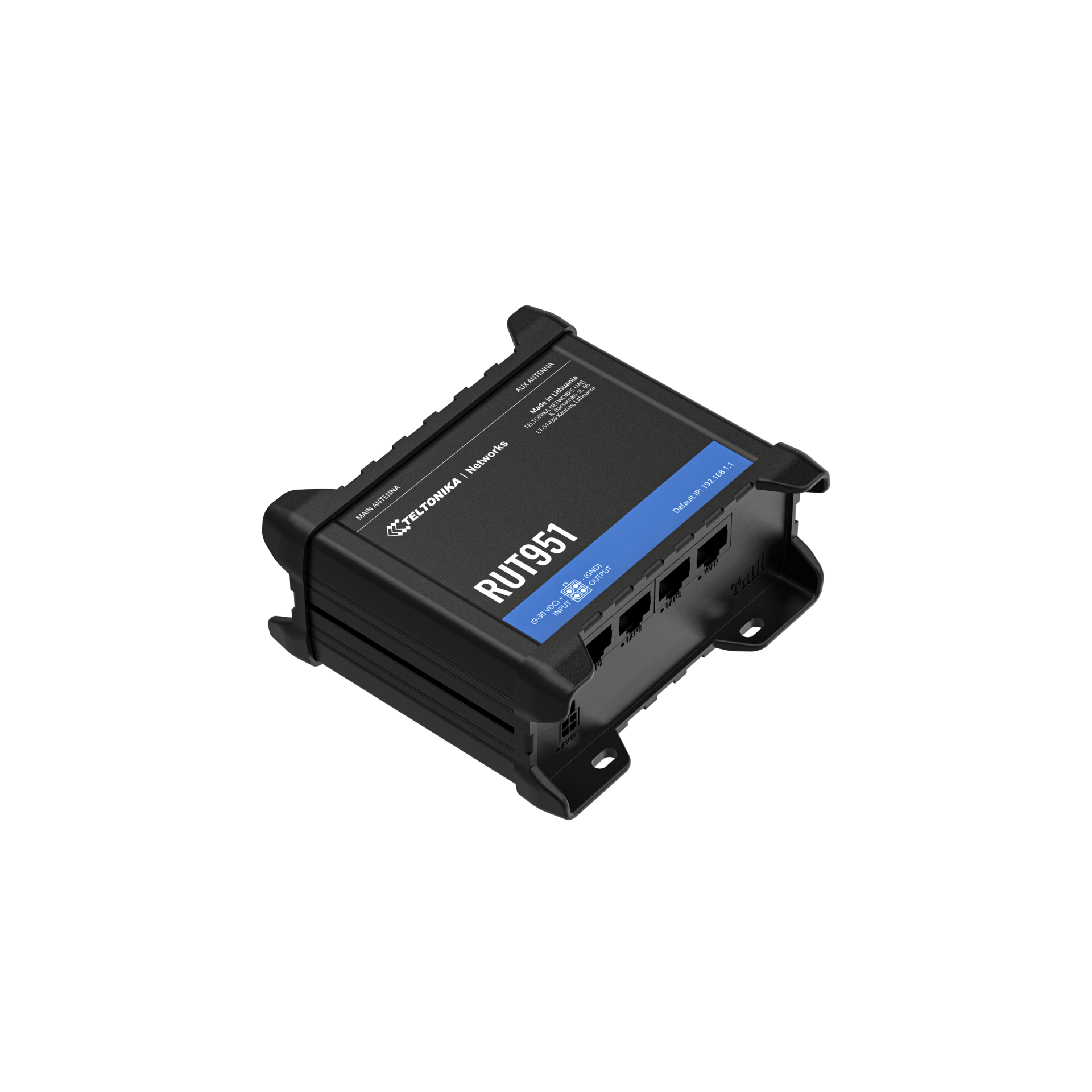

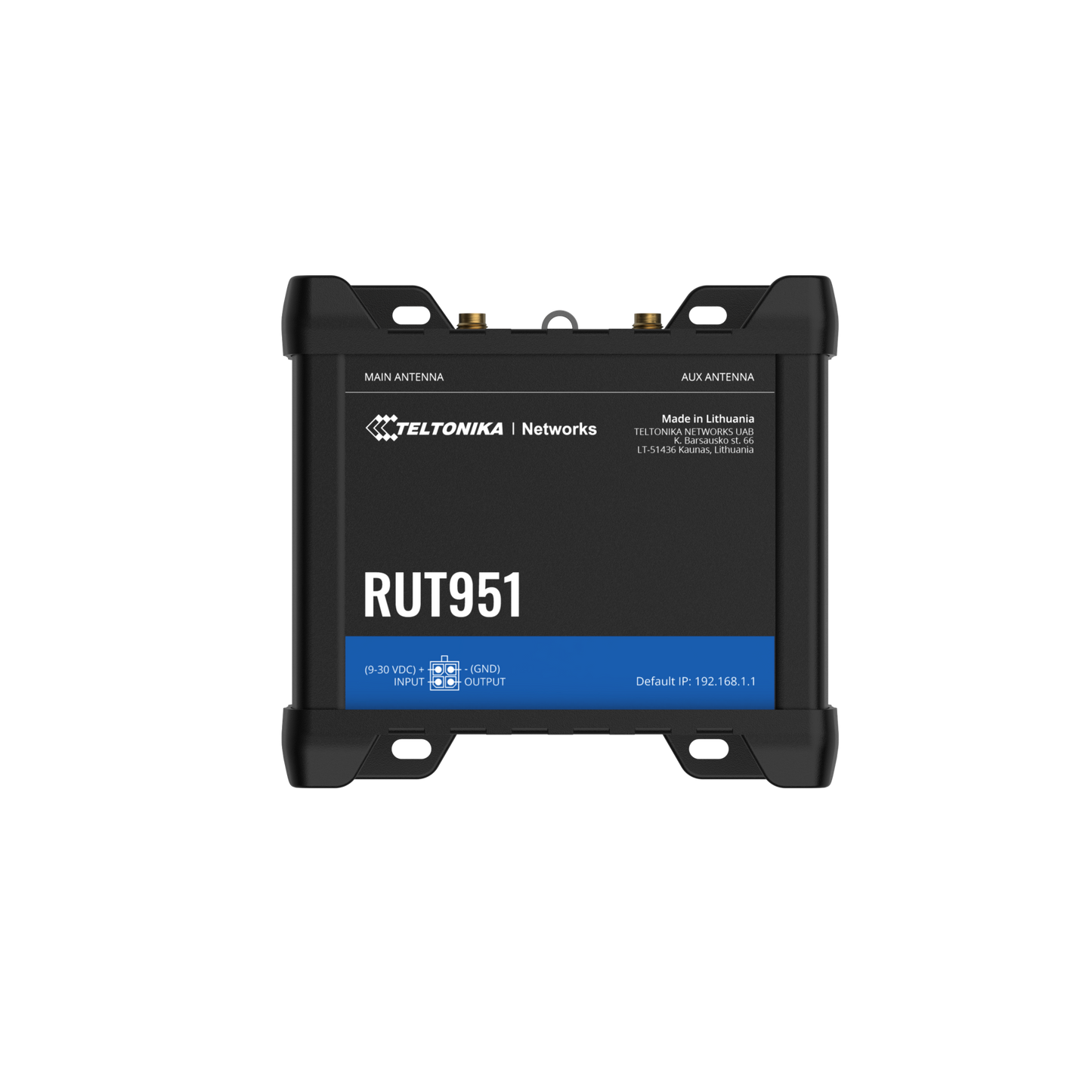

Teltonika RUT951 Industrial Cellular Router

RUT951 features dual-SIM cellular connectivity combined with Wi-Fi and four Ethernet interfaces to meet the needs of the most varied IoT scenarios. Powered by RutOS, this router offers advanced customization options, automation features, and top-level security for your solution.

Mobile

• Mobile module: 4G LTE Cat 4 (up to 150 DL / 50 UL Mbps), 3G (up to 21 DL / 5.76 UL Mbps), 2G (up to 236.8 DL / 236.8 UL kbps)
• 3GPP Release: 10 / 11 (depending on hardware version)
• eSIM: Consumer eSIM, up to 7 profiles (availability varies by order code)
• SIM switch: Auto-switch between 2 SIMs based on conditions (weak signal, data/SMS limit, roaming, etc.)
• Status info: IMSI, ICCID, operator, signal strength, network type, cell ID, and more
• SMS features: Email-to-SMS, SMS-to-Email, HTTP, scheduled SMS, auto-reply, SMPP
• USSD: Supports sending/reading messages
• Block/Allow list: Operator-based lists
• Multiple PDN: Different PDNs for network access & services
• Band management: Band lock, used band status
• SIM PIN management: Set, change, or disable SIM PIN
• APN: Auto APN
• Bridge: Direct LAN-to-ISP connection
• Passthrough: Assign mobile WAN IP to LAN device

Wireless

• Mode: 802.11b/g/n (Wi-Fi 4), AP & STA modes
• Wi-Fi security: WPA2/WPA3, WPA-PSK/EAP, OWE, AES-CCMP, TKIP, PMF, EAP-TLS certificates, MAC-based access control
• Wi-Fi users: Up to 100 simultaneous users
• Features: Wireless mesh, fast roaming, BSS transition, radio resource measurement
• MAC filter: Allow/block list
• QR code generator: Auto Wi-Fi login
• TravelMate: Forward hotspot landing page

Ethernet

• WAN: 1 × 10/100 Mbps port, auto MDI/MDIX
• LAN: 3 × 10/100 Mbps ports, auto MDI/MDIX

Network & Routing

• Routing: Static, Dynamic (BGP, OSPF v2, RIP, EIGRP, NHRP), policy-based
• Protocols: TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SSH, SNMP, MQTT, VXLAN, etc.
• VoIP: SIP & H.323 NAT helpers
• Monitoring: Ping/Wget reboot, periodic reboot, link inspection

Firewall & Security

• Firewall: Port forwarding, traffic rules, TTL customisation, status page
• Port management: Enable/disable, speed control
• Topology: Visual network map
• Hotspot: Captive portal, Radius server, SMS auth, user groups, custom themes
• DHCP: Static/dynamic allocation, relay, MAC wildcards
• QoS / SQM: Traffic prioritisation, WMM, 802.11e
• DDNS: 77+ providers, manual config option
• DNS over HTTPS: Secure DNS queries
• Backup & Failover: Wi-Fi WAN, mobile, VRRP, wired failover options
• Load balancing: Multi-WAN traffic distribution
• SSHFS: Remote file system mounting
• Traffic monitoring: Real-time & historical data
• Port mirroring: Traffic analysis on Ethernet ports

VPN Support

• OpenVPN: Multiple clients/servers, 27 encryption methods
• IPsec: IKEv1/v2, XFRM, 14 encryption methods
• GRE: GRE tunnels, GRE over IPsec
• PPTP/L2TP: Client/server, L2TPv3, L2TP over IPsec
• Stunnel: TLS encryption for apps
• DMVPN: Scalable IPsec VPNs
• SSTP, ZeroTier, WireGuard, Tinc: Full support
• OPC UA & MODBUS: Client/server modes, TCP connections, custom registers

Data & IoT Integration

• Protocols: HTTP(S), MQTT, Azure MQTT
• MQTT Gateway: Modbus MQTT Gateway
• DNP3, DLMS/COSEM: Industrial protocol support
• Teltonika Web API: Configurable API endpoints
• IoT Platforms: ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core

Monitoring & Management

• Web UI: Config, FW updates, logging
• FOTA: Firmware updates via server
• SSH: v1 & v2 supported
• SMS/Call Control: Reboot, mobile data on/off, Wi-Fi on/off
• TR-069: Multiple ACS options supported
• MQTT/SNMP/JSON-RPC: Remote management protocols
• RMS: Teltonika Remote Management System

System Characteristics

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB DDR2
• Storage: 16 MB SPI Flash
• OS: RutOS (OpenWrt-based Linux)
• Languages: Busybox, Lua, C, C++
• Customization: SDK, GPL firmware customisation, package manager

Input / Output

• Input: 1 × Digital Input (0–6 V low, 8–30 V high)
• Output: 1 × Digital Output (max 30 V, 300 mA)
• Events: Email, RMS, SMS triggers
• I/O Juggler: Event automation based on conditions

Power

• Connector: 4-pin industrial DC
• Input voltage: 9–30 VDC, reverse polarity & surge protection
• PoE: Passive PoE via LAN1, 9–30 VDC
• Power consumption: <2 W idle, <7 W max

Physical Interfaces

• Ethernet: 4 × RJ45 (10/100 Mbps)
• I/O: 1 × Digital In, 1 × Digital Out
• Status LEDs: Connection status, signal strength, power, Ethernet
• SIM Slots: 2 × Mini SIM (2FF), optional eSIM
• Antennas: 2 × SMA (LTE), 2 × RP-SMA (Wi-Fi)
• Reset Button: Reboot/User Default/Factory Reset

Physical & Environmental

• Casing: Aluminium housing, plastic panels
• Dimensions: 110 × 50 × 100 mm
• Weight: 287 g
• Mounting: DIN rail, wall mount, flat surface (kits required)
• Operating Temp: -40°C to +75°C
• Humidity: 10–90% non-condensing
• Ingress Protection: IP30

Regulatory & Safety

• Certifications: CE, FCC, IC, PTCRB, RCM, UL/CSA, RoHS, REACH, C1D2
• Operators: AT&T, Verizon, T-Mobile approved
• EMC & Safety Standards: EN, IEC, UL, AS/NZS compliance
• Hazardous Locations: Class I, Div 2, Groups A–D, Class I, Zone 2 Group IIC
