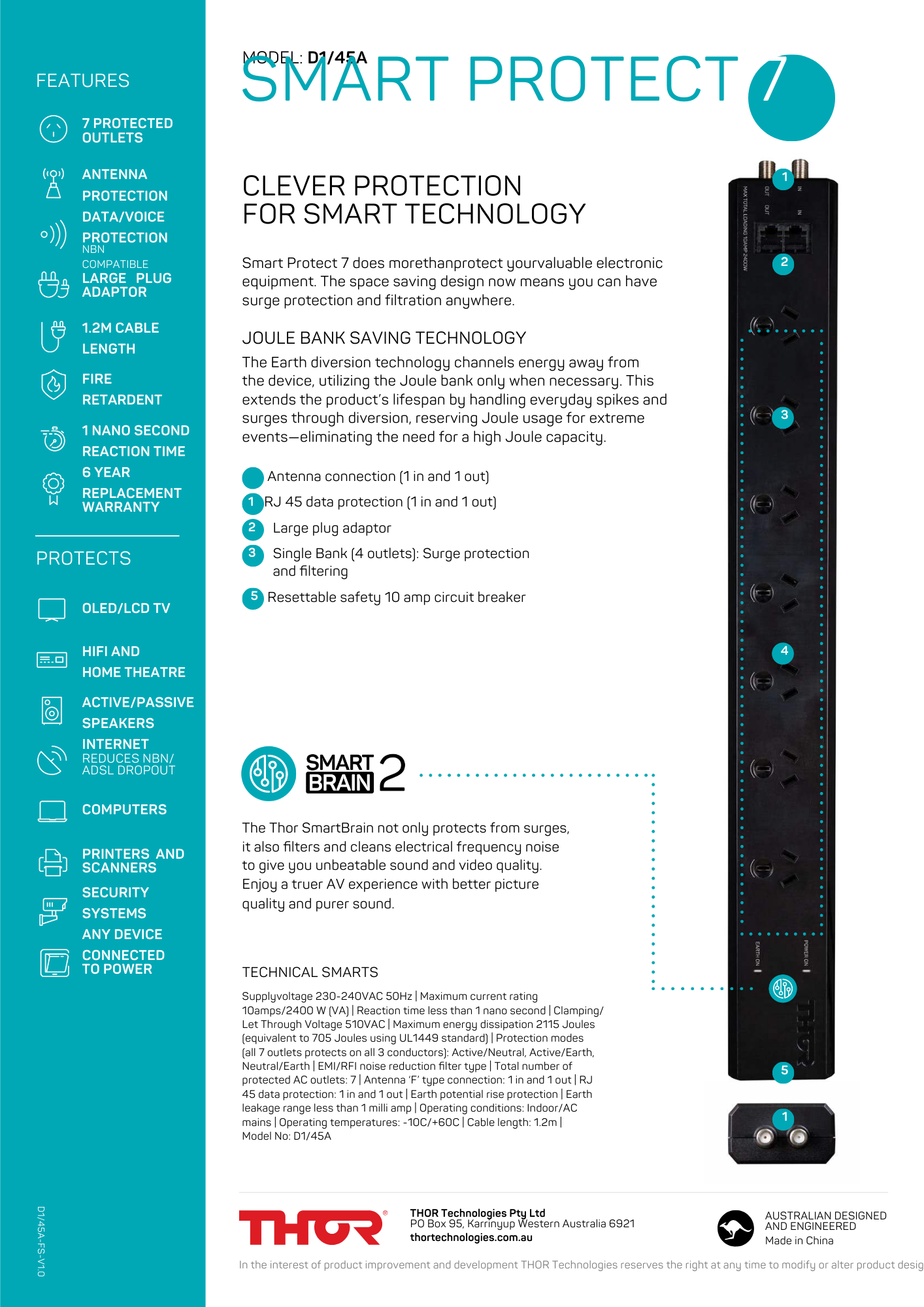

Thor D1/45A Smart Protect 7 Way Surge Protection Power Board

Thor SmartFilter 7 is a popular board because of its slimline profile. The SmartBrain passive filter adds to the industry leading protection capability offering an all round solution.

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatabe sound and video quality. Improves performance in all types of computers too.

TECHNICAL SMARTS

• Product Dimensions: 470mm(L) x 33mm(H) x 75mm(W)
• Supply voltage 230-240/V AC 50/Hz
• Maximum current rating 10amps/2400 W (VA)
• Reaction time less than 1 nanosecond
• Clamping voltage 510V AC
• Maximum energy dissipation 2115 Joules (equivalent to 705 Joules using UL1449 standard)
• Protection modes (all 7 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
• EMI/RFI noise reduction filter type
• Total number of protected AC outlets: 7
• Antenna ‘F’ type connection: 1 in and 1 out
• RJ 45 data protection: 1 in and 1 out
• Earth potential rise protection
• Earth leakage range less than 1 milli amp
• Operating conditions: Indoor/AC mains
• Operating temperatures: -10C/+60C
• Cable length: 1.2m
• Model No: D1/45A



INSIDE THE BRAIN

SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
