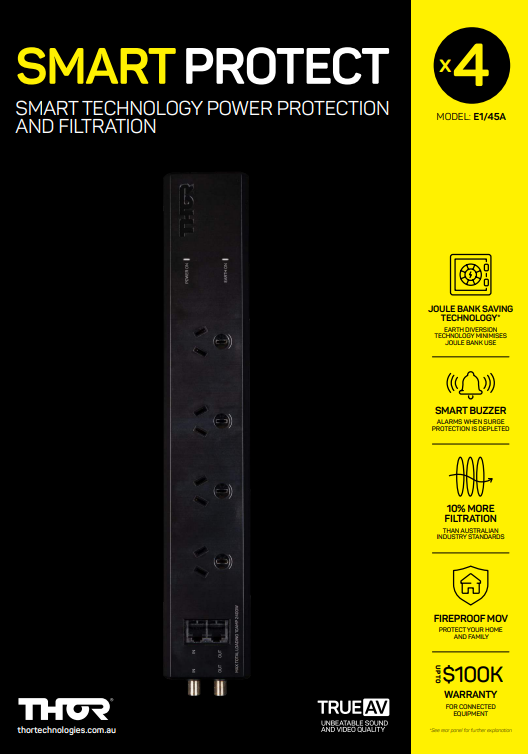

THOR E1/45A Smart Protect 4 | Filtered Surge Power Board

Protect More Than Just Your TV

Modern entertainment systems can represent thousands of dollars in equipment.

The THOR E1/45A helps protect your TV, sound system, gaming consoles, networking equipment and antenna connections from damaging power surges while filtering unwanted electrical noise for cleaner performance.

Perfect for:

• TVs
• Home theatres
• Gaming consoles
• Soundbars
• AV receivers
• Routers
• Starlink systems
• Security systems

It's More Than Just Surge Protection

Unlike a standard power board, the THOR E1/45A also filters unwanted electrical interference that can affect connected equipment.

Benefits include:

• Protection against damaging power surges
• Reduced electrical noise
• Cleaner power delivery
• Protection for antenna connections
• Protection for Ethernet connections
• One central protection point for your entertainment system

The built-in SmartBrain filtration is designed to reduce EMI/RFI interference that can affect audio and video performance.

Built-In Antenna & Network Protection

Many surge protectors only protect the power outlet.

The THOR E1/45A also includes:

• F-type antenna protection
• RJ45 network protection
• Multi-path surge protection

This helps provide more comprehensive protection for equipment connected via power, antenna and Ethernet cables.

Protect Equipment Worth Thousands

A premium TV, sound system, gaming console and networking equipment can easily represent several thousand dollars of electronics.

The THOR E1/45A is designed to help protect those devices from damaging power surges while also reducing unwanted electrical interference.

It's a small investment compared with replacing expensive equipment.

SmartProtect 4 does more than protect your valuable electronic equipment. The space saving design now means you can have surge protection and filtration anywhere. The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound.

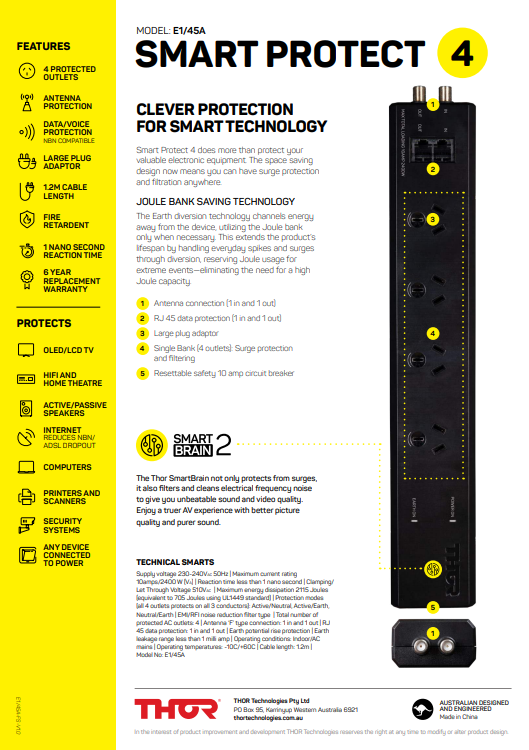

• Product Dimensions: 360mm (L) x 35mm (H) x 60mm (W)
• Supply voltage 230-240/V AC 50/Hz
• Maximum current rating 10amps/2400W(VA)
• Reaction time less than 1 nanosecond
• Clamping/Let Through Voltage 510VAC
• Maximum energy dissipation 2115 Joules (equivalent to 705 Joules using UL1449 standard)
• Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
• EMI/RFI noise reduction filter type
• Total number of protected AC outlets: 4
• Antenna ‘F’ type connection: 1 in and 1 out
• RJ 45 data protection: 1 in and 1 out
• Earth potential rise protection
• Earth leakage range less than 1 milli amp
• Operating conditions: Indoor/AC mains
• Operating temperatures: -10C/+60C
• Cable length: 1.2m
• Model No: E1/45A

All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. E1/45A has an earth detection LED for this reason. SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.

• Premium surge protection
• EMI/RFI noise filtration
• 4 protected outlets
• Antenna surge protection
• RJ45 network protection
• Fast Australian dispatch

Why choose a filtered power board instead of a standard surge protector?

In addition to surge protection, the THOR E1/45A filters electrical noise (EMI/RFI), helping provide cleaner power for sensitive audio and video equipment.

Can I use this with my TV and home theatre?

Yes. It's designed for protecting home entertainment equipment including TVs, sound systems, gaming consoles and AV receivers.

Does it protect antenna and internet cables?

Yes. It includes built-in protection for F-type antenna connections and RJ45 Ethernet connections, helping protect against surges entering through those paths.

How many devices can I connect?

The unit provides four protected AC outlets, making it suitable for most home entertainment systems.
