THOR RF11P Prodigy Rack Guard | 11 Outlet Rack Surge Protector with Advanced Power Filtration
THOR RF11P Prodigy Rack Guard | 11 Outlet Rack Surge Protector with Advanced Power Filtration
Couldn't load pickup availability
Professional Rack Protection for Mission-Critical Equipment
Your rack contains thousands—or even tens of thousands—of dollars worth of equipment.
The THOR RF11P helps protect AV systems, servers, routers, switches and communications equipment from damaging power events while filtering electrical noise that can affect reliability and performance.
Perfect for:
✔ AV racks
✔ Server rooms
✔ Network cabinets
✔ Security systems
✔ Schools
✔ Commercial buildings
✔ Clubs and venues
✔ Communications racks
More Than a Rack Power Board
Unlike a standard rack PDU, the RF11P combines premium surge protection with advanced electrical noise filtration.
Benefits include:
✔ Patented non-sacrificial surge protection
✔ ProdigyBrain power filtration
✔ Eleven protected outlets
✔ Rack-mountable 1RU design
✔ Adjustable mounting brackets
✔ Dual protection status indicators
✔ Premium build quality
It's designed specifically for protecting professional equipment that needs reliable, clean power.
Protection That Keeps Working
Many conventional surge protectors rely on sacrificial components that can degrade after significant surge events.
The RF11P uses THOR's patented non-sacrificial technology, which is designed to absorb surge energy and reset itself, providing ongoing protection without relying solely on traditional sacrificial components.
This is one of the key reasons professionals choose the Prodigy range.

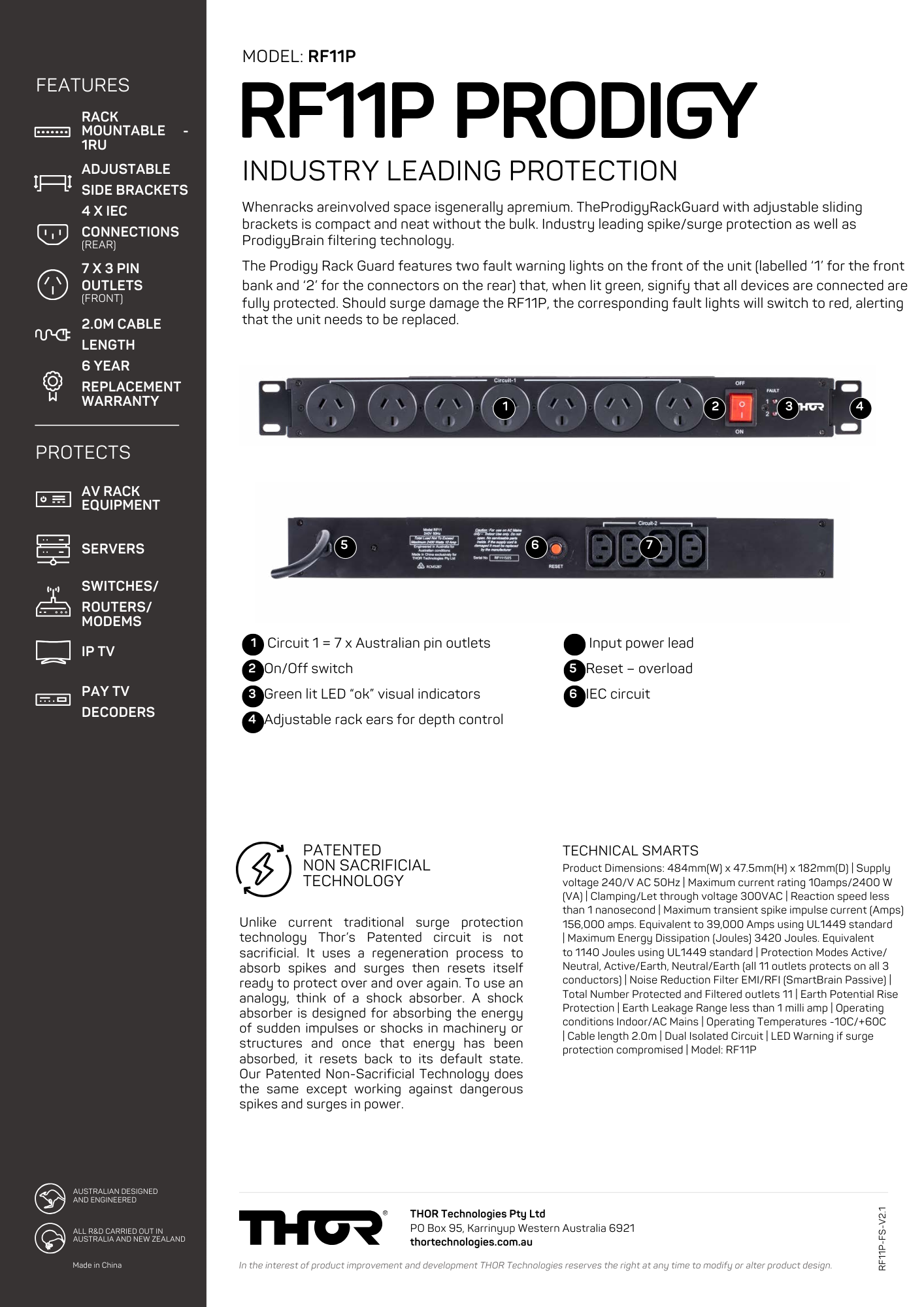

The Prodigy Rack Guard features two fault warning lights on the front of the unit (labelled ‘1’ for the front bank and ‘2’ for the connectors on the rear) that, when lit green, signify that all devices are connected are fully protected. Should surge damage the RF11P, the corresponding fault lights will switch to red, alerting that the unit needs to be replaced
Technical Smarts
- Product Dimensions: 484mm(W) x 47.5mm(H) x 182mm(D)
- Supply voltage 240/V AC 50Hz
- Maximum current rating 10amps/2400 W (VA)
- Clamping Voltage 300VAC
- Reaction speed less than 1 nanosecond
- Maximum Energy Dissipation 35,200+ (does not use Joules like traditional surge circuits)
- Noise Reduction Filter EMI/RFI (Prodigy Passive 30% improved)
- Total Number Protected and Filtered outlets 11
- Earth Leakage Range less than 1 miili amp
- Operating conditions Indoor/AC Mains
- Operating Temperatures -10C/+60C
- Cable lenght 2.0m
- Patented non sacrifical protection Circuit
- LED both lit green indicates all ok
- Model: RF11P
Reduce Electrical Noise
Electrical interference can contribute to issues such as:
✘ Equipment lockups
✘ System hangs
✘ File corruption
✘ AV interference
✘ Unexpected glitches
The RF11P's ProdigyBrain filtration helps reduce unwanted EMI/RFI interference while preventing connected devices from feeding electrical noise back into the power system.
Protect Equipment Worth Thousands
A typical equipment rack may contain:
✔ Servers
✔ Enterprise switches
✔ AV processors
✔ Professional amplifiers
✔ Communications hardware
✔ Network storage
Replacing even one damaged device can cost significantly more than investing in premium power protection.
The RF11P is designed to help safeguard those investments while improving overall power quality.
What equipment is the RF11P designed to protect?
It's designed for professional rack-mounted equipment including servers, routers, switches, AV processors, amplifiers, IPTV systems and communications hardware.
What makes the RF11P different from a standard rack PDU?
The RF11P combines power distribution with THOR's patented non-sacrificial surge protection and ProdigyBrain filtration, helping protect connected equipment while reducing unwanted electrical noise.
What do the front LED indicators mean?
The front-panel LEDs provide a visual indication of the protection status. Green indicates normal protection, while a red indicator signals that the corresponding protection circuit has been compromised and the unit should be replaced.
What's the difference between the RF11P and RF11iQP?
The RF11P provides premium surge protection and filtration. The RF11iQP includes all of these features, plus network connectivity, remote outlet control, automatic reboot functions and monitoring capabilities.
