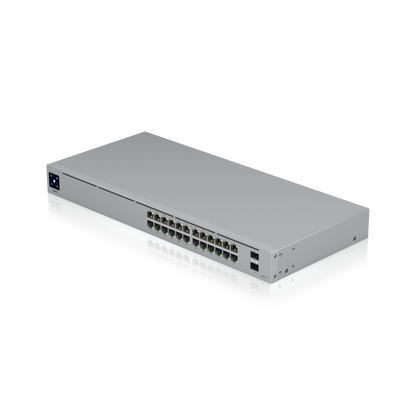

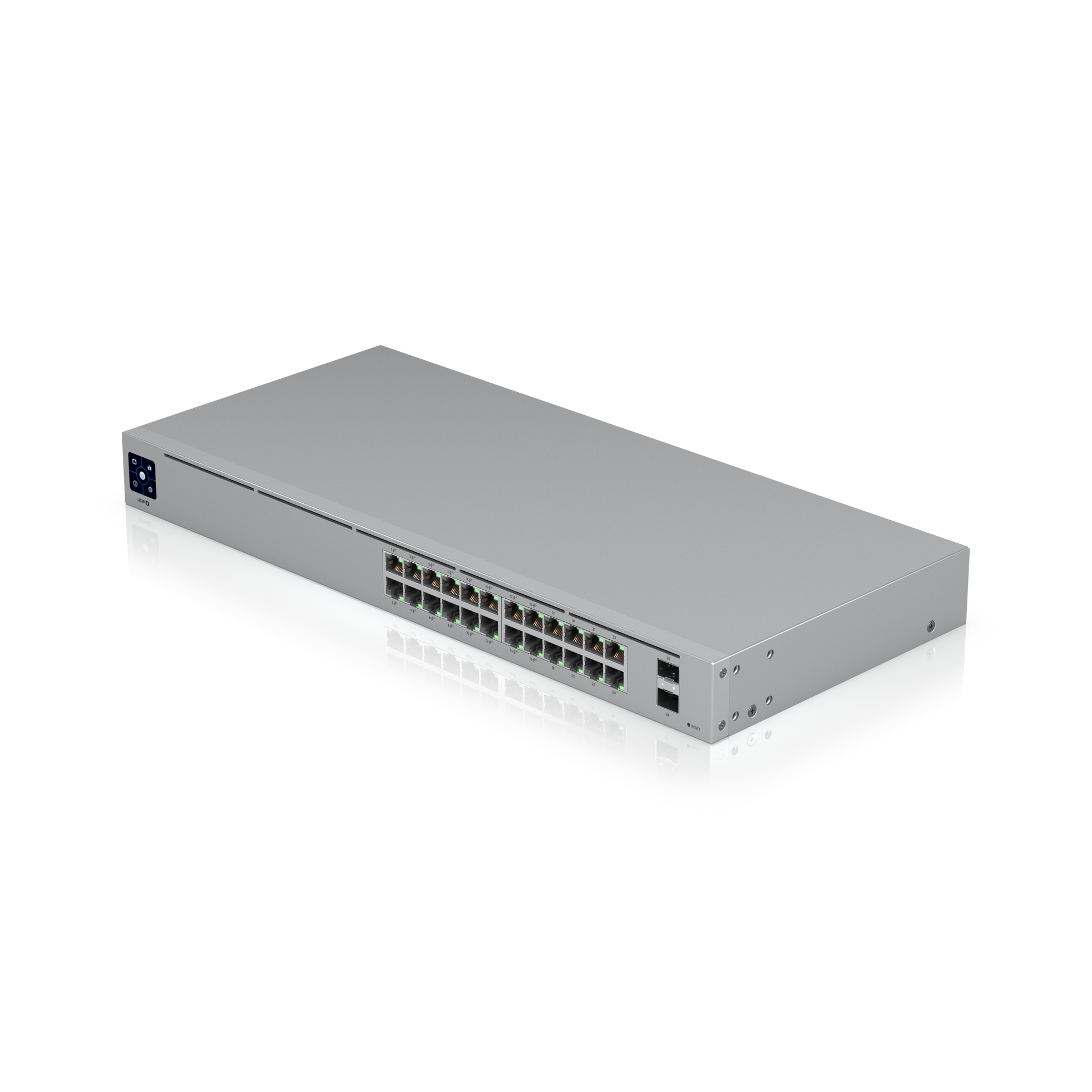

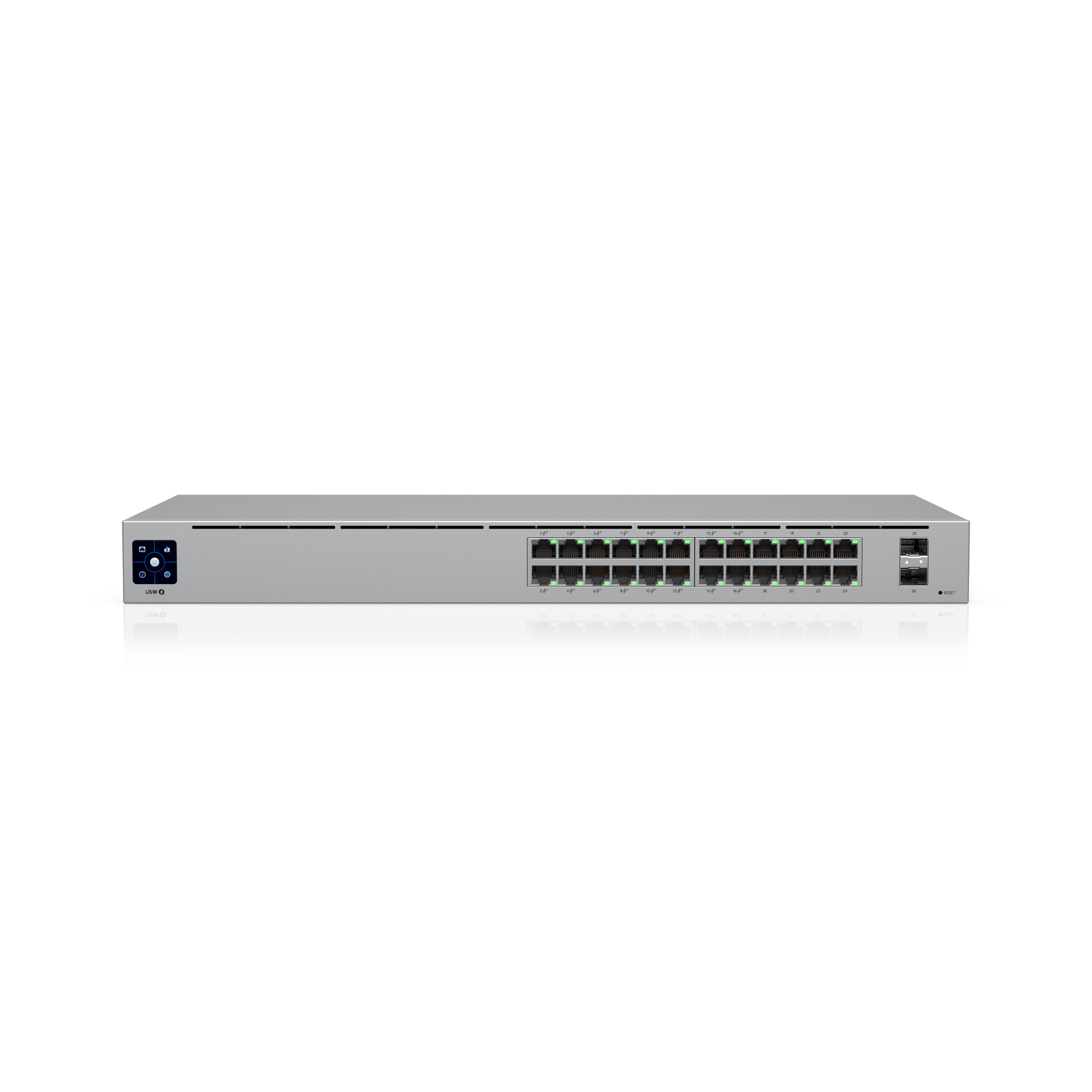

Ubiquiti UniFi 24-Port Managed Gigabit PoE Switch Gen2 | USW-24-PoE

The Ubiquiti UniFi USW-24-PoE Gen2 is a fully managed Layer 2 Gigabit switch designed for professional networking environments. With 24 Gigabit Ethernet ports, including 16 x 802.3af/at PoE+ ports, dual Gigabit SFP uplinks and seamless UniFi Network integration, it provides reliable power and connectivity for access points, IP cameras, VoIP phones and other PoE devices. Its rackmount design, silent cooling and enterprise management features make it ideal for offices, schools, retail stores and commercial installations.

Power Your PoE Devices

Reduce cabling complexity by supplying power and data over a single Ethernet cable.

Features include:

• 24 x Gigabit RJ45 ports
• 16 x 802.3af/at PoE+ ports
• 95W total PoE budget
• 2 x 1Gb SFP uplink ports
• Automatic PoE detection
• Gigabit switching performance

Perfect for UniFi access points, IP cameras, VoIP phones and other compatible PoE devices.

Fully Managed with UniFi Network

Manage your switch alongside all your UniFi devices from one intuitive interface.

Benefits include:

• Centralised management
• VLAN configuration
• Port profiles
• Traffic monitoring
• Device statistics
• Remote administration
• Automatic firmware updates

Rackmount Business Design

Designed for professional installations.

Features include:

• Standard 19-inch rackmount
• Colour touchscreen status display
• Quiet cooling system
• Enterprise-grade hardware
• Robust metal enclosure
• Long-term reliability

Suitable for communications cabinets, server racks and equipment rooms.

Key Features

• 24 x Gigabit Ethernet ports
• 16 x 802.3af/at PoE+ ports
• 95W total PoE budget
• 2 x Gigabit SFP uplink ports
• Managed Layer 2 switching
• UniFi Network integration
• Rackmount metal chassis
• Colour touchscreen display
• Silent cooling
• Australian stock

• 24 Gigabit Ethernet Ports: Including 16 auto-sensing 802.3at PoE+ ports, providing up to 32W per port, ideal for powering devices like IP cameras, access points, and VoIP phones.
• 2 SFP Ports: For high-speed fiber uplinks, ensuring robust connectivity across your network.
• Fanless Design: Operates silently, making it suitable for noise-sensitive environments.
• 1.3" Touchscreen Display: Offers real-time status updates and easy management.
• Comprehensive Layer 2 Features: Supports VLANs, port mirroring, 802.1X control, and more for enhanced network management.
• Efficient Power Consumption: Consumes 25W (excluding PoE output), with a total PoE output of 120W.
• Durable Build: Constructed with SGCC steel, ensuring longevity and reliability.
• Wide Operating Temperature Range: -5°C to 40°C, suitable for various environmental conditions.

This switch is compatible with UniFi Network version 7.2.94 and later, providing centralized management through the UniFi Network application. Ideal for businesses seeking a reliable, scalable, and efficient networking solution.

• Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
• Port Layout: 24 × 1 GbE RJ45 (16 PoE+), 2 × 1G SFP
• Max. PoE Output: Up to PoE+
• Total PoE Availability: 95W
• Form Factor: Rack mount (1U)
• Switching Capacity: 52 Gbps
• Total Non-Blocking Throughput: 26 Gbps
• Forwarding Rate: 39 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Layer 2 Features:
• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration: Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Hardware:
• PoE Ports: 16 × PoE+
• Max. PoE Wattage per Port: PoE 15.4W, PoE+ 32W
• Max. Power Consumption: 25W (excluding PoE), 120W (including PoE)
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Supply: AC/DC, internal, 120W
• Power Input Method: AC input
• Management & Display:
• Ethernet Management: Yes
• LCM Display: 1.3" touchscreen
• Physical & Environmental:
• Heat Dissipation (Excl. PoE): 85.3 BTU/hr
• Weight: Without brackets 3 kg (6.6 lb), with brackets 3.1 kg (6.8 lb)
• Enclosure & Mount Material: SGCC steel
• Supported Rack Depth: 400–1200 mm (15.7–47.2")
• ESD/EMP Protection: Air ±16kV, Contact ±12kV
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 10–90% non-condensing
• Certifications & Compliance:
• CE, FCC, IC
• NDAA Compliant: Yes

How many PoE ports does the USW-24-PoE have?

The switch features 16 x 802.3af/at PoE+ Gigabit Ethernet ports, allowing you to power compatible access points, IP cameras, VoIP phones and other PoE devices.

What is the total PoE power budget?

The USW-24-PoE provides a 95W total PoE budget, shared across the 16 PoE+ ports.

Does this switch support SFP uplinks?

Yes. It includes 2 x 1Gb SFP ports for fibre uplinks or high-speed backbone connections.

Can I manage it through UniFi?

Yes. The switch is fully managed using the UniFi Network application, allowing centralised configuration, monitoring and firmware updates.

Is this switch suitable for CCTV systems?

Yes. It's an excellent choice for powering UniFi and third-party PoE IP cameras while providing reliable Gigabit connectivity and centralised network management.
