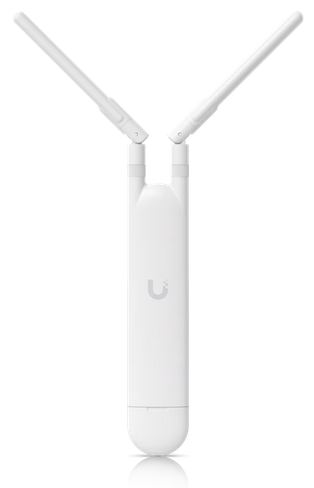

Ubiquiti UniFi AC Mesh Outdoor WiFi 5 Access Point | UAP-AC-M

The Ubiquiti UniFi AC Mesh (UAP-AC-M) is a compact, weather-resistant WiFi 5 access point designed to deliver reliable wireless coverage in both indoor and outdoor environments. Featuring dual-band 802.11ac performance, Gigabit Ethernet, PoE support and flexible wall or pole mounting, it's ideal for extending WiFi across gardens, warehouses, schools, caravan parks, outdoor dining areas and commercial sites. Fully managed through the UniFi Network application, it integrates seamlessly into existing UniFi deployments.

Reliable Outdoor WiFi

Purpose-built for outdoor deployments, the UAP-AC-M combines weather resistance with enterprise-grade wireless performance.

Features include:

• Dual-band WiFi 5 (802.11ac)
• Up to 867Mbps on 5GHz
• Up to 300Mbps on 2.4GHz
• Weather-resistant IPX4 enclosure
• 200+ connected clients
• Coverage up to 140m²

Flexible Mounting Options

Install the access point exactly where coverage is needed.

Benefits include:

• Pole mounting
• Wall mounting
• Compact design
• Indoor or outdoor installation
• Included mounting hardware
• External dual-band antennas

The removable antennas also allow compatibility with selected optional directional antennas for specialised wireless deployments.

Key Features:

• Dual-Band Wi-Fi: Simultaneously supports both 2.4 GHz and 5 GHz bands, delivering up to 1167 Mbps combined throughput.
• Compact and Weather-Resistant Design: Built for outdoor use, with an IPX5-rated enclosure to withstand tough weather conditions.
• Modular Antenna Options: Includes detachable omnidirectional antennas and supports external antennas for custom coverage needs.
• Seamless Network Integration: Easily integrates with the UniFi Controller for centralised management, monitoring, and configuration.
• Mesh Networking: Supports UniFi Mesh technology to create wireless links between multiple access points without additional cabling.
• Power over Ethernet (PoE): Simplifies installation by combining power and data over a single cable.

Specifications:

• Wi-Fi Standards: 802.11a/b/g/n/ac
• MIMO:
  • 2x2 MIMO for 2.4 GHz (up to 300 Mbps)
  • 2x2 MIMO for 5 GHz (up to 867 Mbps)
• Maximum Range: Up to 183 metres (600 feet)
• Ethernet Ports: (1) 10/100/1000 Mbps Ethernet port
• Power Options:
  • 802.3af PoE
  • 24V passive PoE
• Dimensions: 353 x 46 x 34 mm (without antennas)
• Weight: 152 g (without antennas)
• Operating Temperature: -30°C to 70°C
• Enclosure: IPX5-rated for outdoor durability
• Mounting Options: Pole, wall, or fast-mount system (hardware included)

The Ubiquiti UniFi UAP-AC-M is an excellent choice for extending Wi-Fi to outdoor areas, such as gardens, event spaces, or campuses. With its high performance, weather resistance, and support for mesh networking, it ensures seamless and reliable connectivity wherever you need it.

Is the UniFi AC Mesh suitable for outdoor use?

Yes. The UAP-AC-M features an IPX4-rated weather-resistant enclosure, making it suitable for outdoor installations in exposed environments.

Does it only work as a mesh access point?

No. Despite its name, it works as both a standard wired access point and a wireless mesh access point within a UniFi network.

How is it powered?

The UAP-AC-M supports both 802.3af PoE and 24V Passive PoE, providing flexible installation options.

Can I mount it on a pole?

Yes. Pole and wall mounting accessories are included, making it easy to install on buildings, poles, fences and outdoor structures.

Is it compatible with the UniFi Network application?

Yes. Like other UniFi access points, it is centrally managed through the UniFi Network application for configuration, monitoring and firmware updates.
