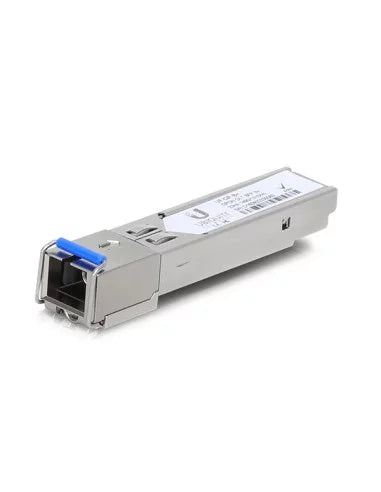

Ubiquiti UF-GP-B+ U Fiber GPON B+ Transceiver 2.5Gbps UBNT-UF-GP-B+

The Ubiquiti UFiber GPON Optical Module (UBNT-UF-GP-B+) is a high-performance, hot-swappable optical transceiver designed for GPON (Gigabit Passive Optical Network) applications. This module is ideal for connecting UFiber OLTs (Optical Line Terminals) to UFiber Nano, UFiber loco, or other ONUs (Optical Network Units) in a GPON deployment. It ensures reliable fibre connectivity with high throughput and low latency.

Key Features:

• GPON Compatibility: Fully compliant with GPON ITU-T G.984.2 standards for efficient, high-speed fibre communication.
• Plug-and-Play: Hot-swappable SFP design allows for seamless installation and replacement without interrupting operations.
• High-Speed Fibre Connectivity: Supports data rates of up to 2.5 Gbps downstream and 1.25 Gbps upstream.
• Extended Reach: Provides a maximum fibre reach of up to 20 km for long-distance connectivity.
• Low Power Consumption: Optimised for energy-efficient operation.
• Wide Compatibility: Works with Ubiquiti's UFiber OLTs and other compatible GPON devices.

Specifications:

• Data Rate:
  • Downstream: 2.5 Gbps
  • Upstream: 1.25 Gbps
• Transmission Distance: Up to 20 km
• Wavelength:
  • TX: 1310 nm
  • RX: 1490 nm
• Connector: SC/UPC
• Operating Temperature: -40°C to 85°C
• Power Consumption: <2W
• Dimensions: 56 x 12.7 x 9 mm
• Weight: 25 g

The Ubiquiti UFiber GPON Optical Module (UBNT-UF-GP-B+) is a reliable and efficient solution for extending GPON connectivity over long distances. Its compact design, high-speed capability, and compliance with industry standards make it a perfect choice for modern fibre network deployments.
